FITS: Jeep JT Gladiator Rubicon / Sport / Overland / Mojave
• Extreme Duty Rear 2-Piece Driveshaft for JT Gladiator
Now that you own the Newest Generation JT Gladiator, it's time to upgrade to the Strongest American Made Driveshaft.
Why not buy from a company that owns, lives, and breathes off-road vehicles like we do? We test our products on our own Jeeps to make sure the parts we are using hold up to the pressure and abuse that they are put through.
• Application & Lift Guidance
-
Fits Jeep JT Gladiator Rubicon / Sport / Overland / Mojave
-
Works with up to 6" lift. Over that may cause driveline angles to become too severe and result in slight vibration on/off throttle
-
Larger tires increase drivetrain stress—this driveshaft is built to handle it
-
Measurement required: Please enter Year, Make, Model, Lift Size at checkout, or email/call Adams Driveshaft after purchase
-

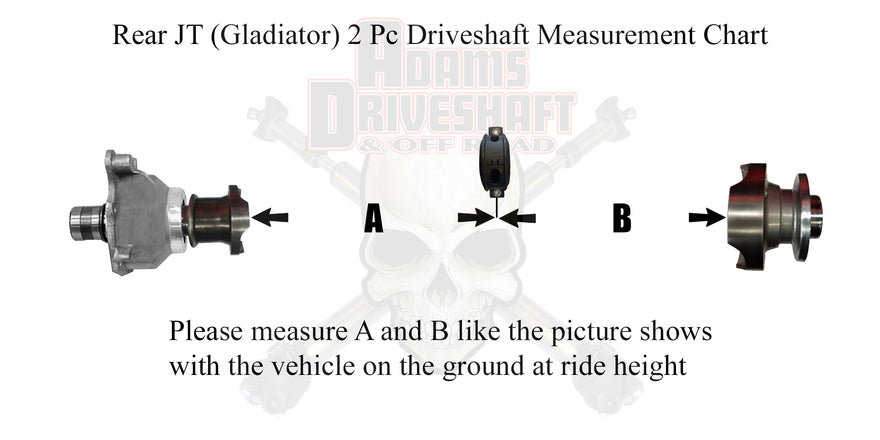

Measurement chart available (Jeep must be at ride height)
• Built with Forged Components for Maximum Strength
-
Rear Driveshaft Part #: ASDJT-1350R-S-2PC
-
Front section: 3" x .083 Wall D.O.M. tubing
-
Rear section: 2.5" x .095 Wall D.O.M. tubing
-
Long 1.5" full spline slip yoke with 35° angle
-
Constructed mostly with Adams Driveshaft forged components; remainder with Neapco and Spicer
-
Solid, non-greasable 1350 U-joints — lifetime replacement if broken by torque
-
Forged rear U-bolt style Dana 44 pinion yoke with full U-joint cap support
-
Solid steel rear transfer case flange yoke with Grade 10 CV bolts
-
Painted in gloss black show-quality finish

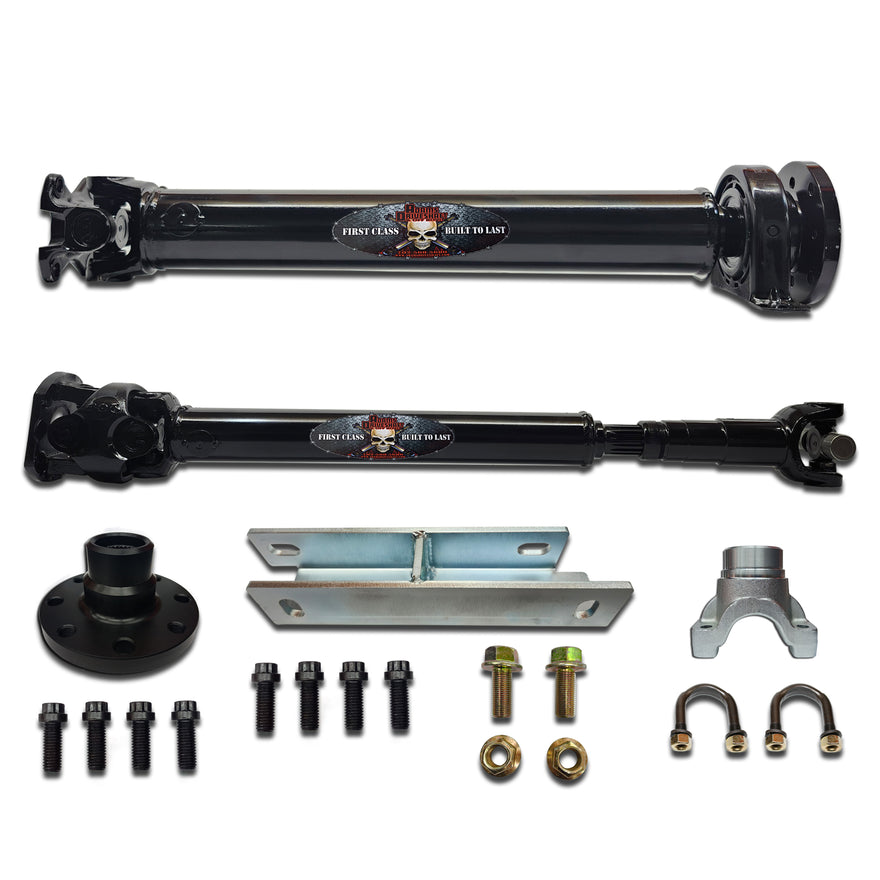

• What’s Included
-
[1] Adams Steel Rear 1350 Transfer Case Output Shaft Flange Yoke
-
[1] Adams Rear 1350 Forged Pinion Yoke
-
[1] Adams Rear Center Bearing Bracket
-
[1] Set of 1350 U-bolts
-
[8] Grade 10 CV bolts
-
[1] Adams Driveshaft T-shirt
Key Specifications
Vehicle Compatibility: Jeep JT Gladiator (Rubicon / Sport / Overland / Mojave)
Lift Range: Up to 6"
Tube Size (Front): 3" x .083 wall D.O.M.
Tube Size (Rear): 2.5" x .095 wall D.O.M.
Slip Yoke: 1.5" full spline with 35° angle
U-joint Type: 1350 Solid, Non-Greasable
Finish: Gloss Black
Includes: CV Bolts, Flange Yoke, Pinion Yoke, Center Bracket, T-shirt
Part Number: ASDJT-1350R-S-2PC
