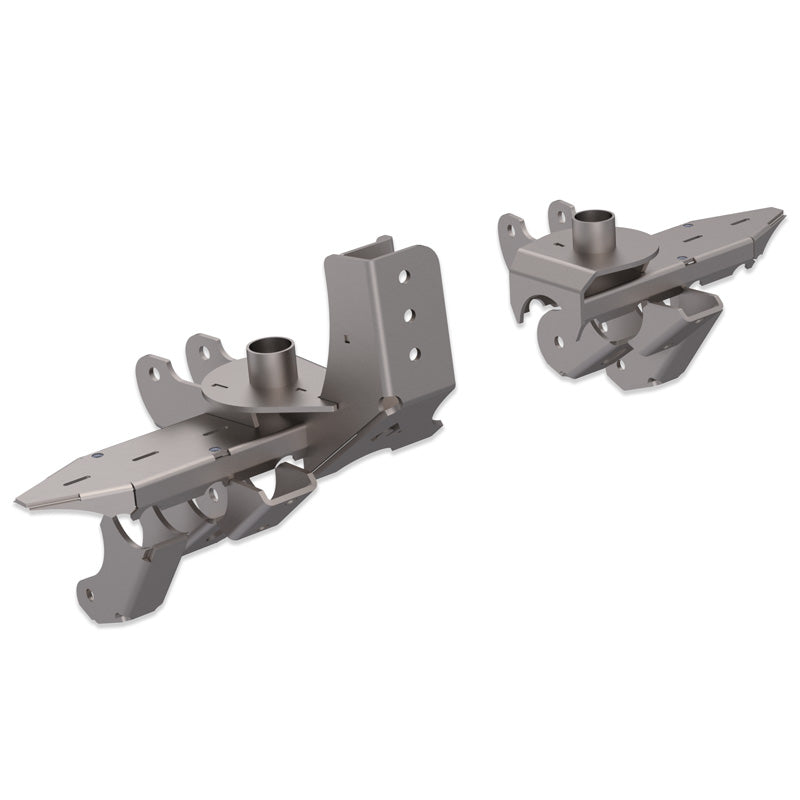

FITS: Jeep Gladiator JT – 1 TON Axle Swap Applications
• Patented APEX Truss Design
Streamlined and rigid peaked top structure improves weldability, lowers weight, and eliminates long weld seams.
• Lightweight, Robust Construction
CNC laser cut from ¼" and 3/16” mild steel for a balance of strength and weight. Dimpled holes add rigidity without excess material.
• Simplified Installation Process
Truss is reinforced and drop-in ready, aligning easily to the differential. Over 70% less welding required compared to previous designs.
• Factory Compatibility
Utilizes 3D data from Dana Corp and OEMs to ensure proper clearance and fixture points for all suspension brackets.
• Comprehensive Suspension Integration
Includes fixture points for factory link, spring, anti-sway bar, and shock locations. Coil bracket and bump stop pads are integrated into the truss body.
• Designed for JT 14 Bolt Axle Swaps
Width compatibility is critical. Older axles may not support included ABS bracket options. ABS parts not included.
Key Specifications
Truss Thickness: 3/16”
Steel Type: Mild Steel (¼" & 3/16")
Compatibility: Jeep Gladiator JT (1 TON Axle Swaps)
Includes ABS Brackets: No
Welding Required: Yes (minimized)
