• Product Overview

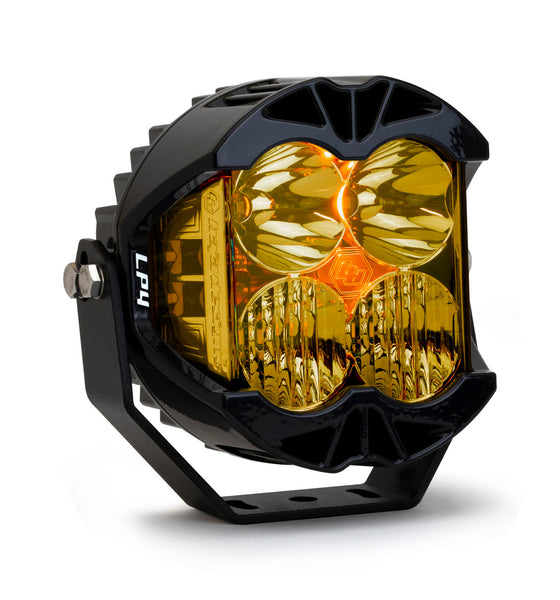

The LP4 is the smallest variant in the LP lineup and uses the same design architecture of its larger siblings.
The LP4 features a total of 8,857 raw lumens, pumping out 6,885 forward projecting raw lumens and 1,972 raw lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT), providing 200-degree spread of light that illuminates zones 1, 2 and 3 along with reaching into zone 4 spot.
To keep your light performing at its highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing and over the rear heat sinks – drastically improving cooling capacity and performance.
• Customizable Appearance

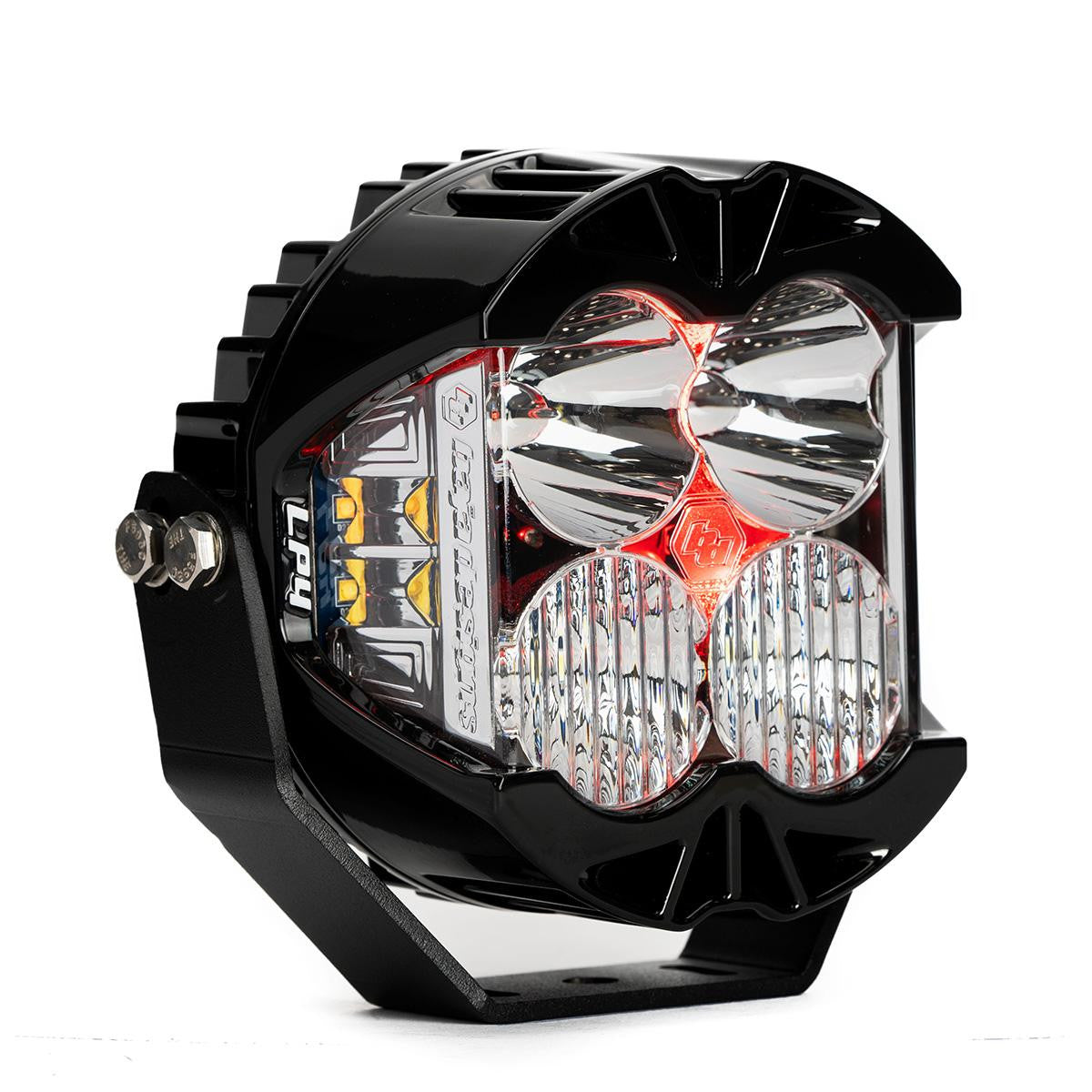

The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
• Legal Disclaimer
Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY.
Never use it on public roads to avoid confusion with law enforcement or emergency vehicles.
The owner/driver is responsible for observing all highway equipment laws and safety regulations.
• Note on Wiring
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175.
• Performance & Protection
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Key Specifications
Compatibility: Universal
Total Output: 8,857 lumens
Forward Output: 6,885 lumens
IPT Output: 1,972 lumens (200° peripheral spread)
Cooling: Direct Ducted Cooling (DDC)
Backlight Options: Amber, Red, Blue, Green
Lens: Replaceable (uService)
Harness: Not included (use 640175)
Color Temperature: 5000K
Warranty: Limited Lifetime
