• Product Overview

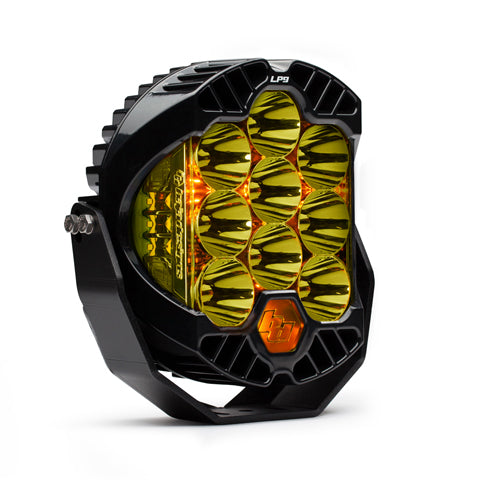

Inspired by Baja Designs’ iconic 8-inch La Paz HID, the LP9 boasts contemporary styling and top-notch performance, incorporating some of today's most advanced LED technologies.
With 9 forward-projecting LEDs producing 11,025 Lumens at 105 watts, and 6 LEDs dedicated to Integrated Peripheral Technology (IPT) generating 1,140 lumens at 10.5 watts per side, the LP9 achieves an outstanding total lumen output.
The IPT ensures an impressive 200-degree spread of usable light. The housing is engineered for exceptional heat dispersion, employing Direct Ducted Cooling for effective airflow from the front to the rear.
• Optimized for High-Speed Performance
Featuring daytime running light, low, and high-power modes, the LP9 caters to all lighting needs.
It is available in a standard model suitable for a wide range of off-road applications and a Racer Edition configuration tailored for high-speed driving.
The Racer Edition, with a similar power draw, delivers a tighter pattern for enhanced visibility at greater distances.
• Customizable & Serviceable
Both models incorporate uService technology, allowing users to change the lens pattern and color based on driving conditions or for a lens refresh.
• Note on Wiring
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640172.
• Performance & Protection
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Key Specifications
Compatibility: Universal
Main Output: 11,025 lumens (105W)
IPT Output: 1,140 lumens per side (10.5W)
Beam Spread: 200° (IPT)
Pattern: Racer Edition – focused for long-distance visibility
Cooling: Direct Ducted Cooling
Modes: Daytime running, low, high
Lens: Replaceable (uService)
Harness: Not included (use 640172)
Color Temperature: 5000K
Warranty: Limited Lifetime
