• Product Overview
The Baja Designs XL Pro auxiliary light is designed to illuminate the terrain ahead, making it ideal for off-road enthusiasts who need powerful, versatile lighting.
The XL Pro features Baja Designs' trademarked high-speed spot reflectors, which deliver both a longer and wider beam pattern.
With next-generation LED technology, the XL Pro offers 65% greater distance than the previous model while producing 4,095 raw lumens per light.
• Durability & Application
Durable and built to last, the XL Pro includes a 20% dimming feature, making it suitable for various off-road vehicles such as trucks, vans, UTVs, and motorcycles.
This single light kit includes XL mounting hardware only, ensuring a straightforward setup.
NOTE: This light does not come with a wiring harness.
Use 640115 (On/Off 3-pin) or 640119 (On/Off with mode switch).
• ELS™ Scores
XL Pro Driving Combo (Clear): ELS 88° / 6.6 / 432' / 3764
XL Pro Spot (Clear): ELS 60° / 4.1 / 498' / 3228
XL Pro Wide Cornering (Clear): ELS 102° / 5.8 / 162' / 3363
• Lens Pattern Options

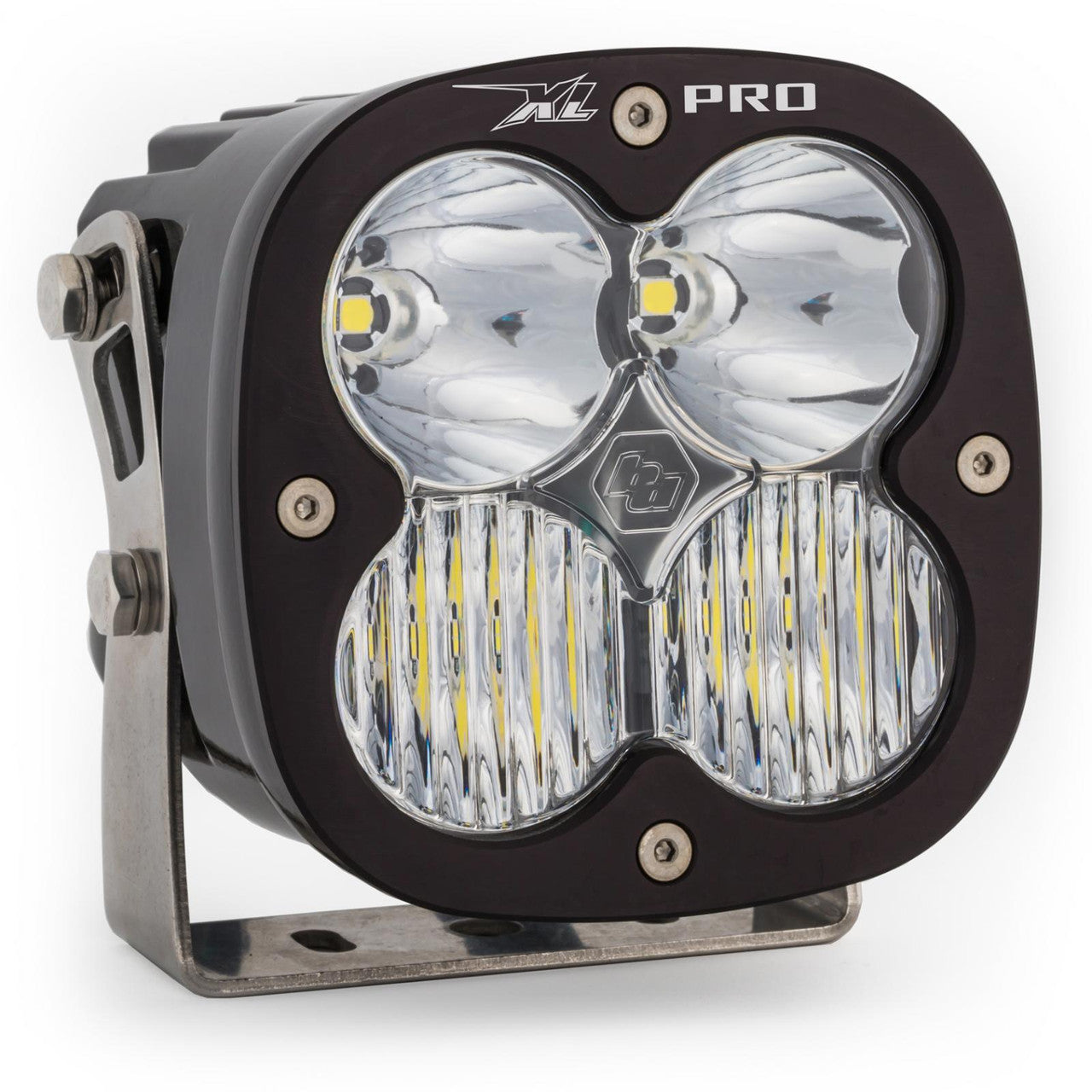

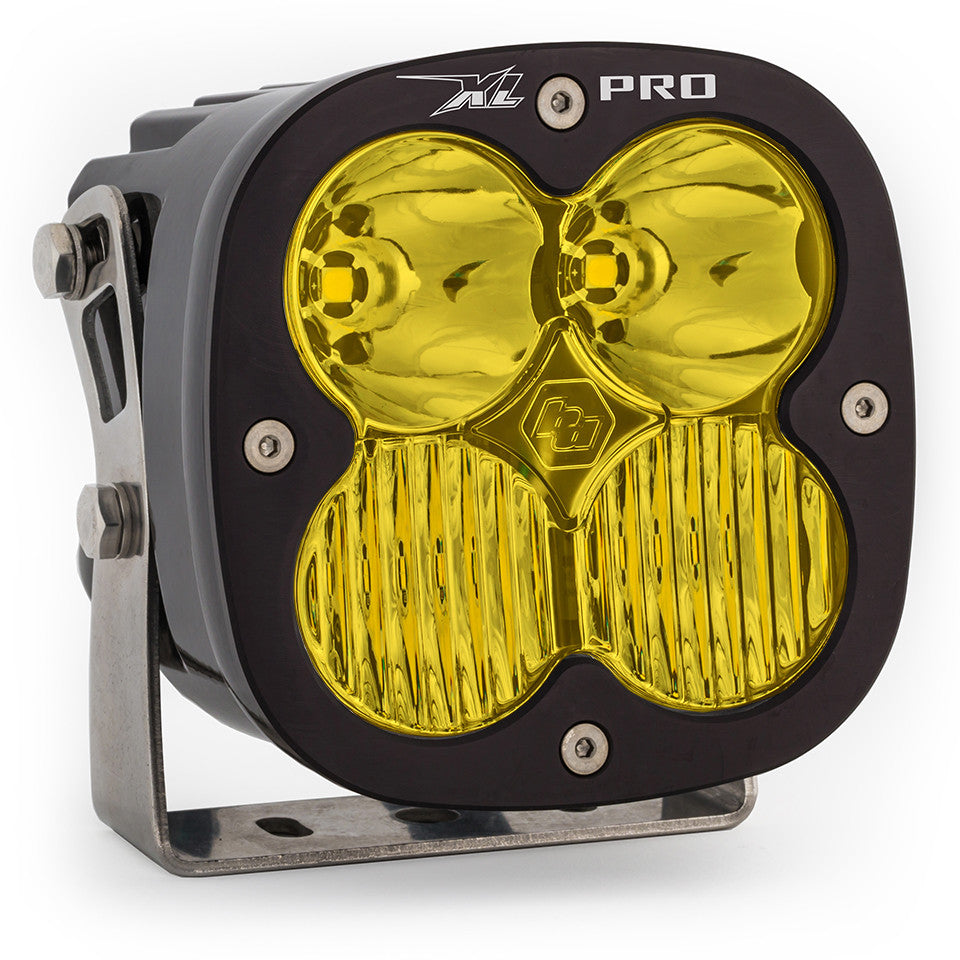

Driving Combo: Blended optics for near-field (zones 1–2) and distance (zone 3) illumination.

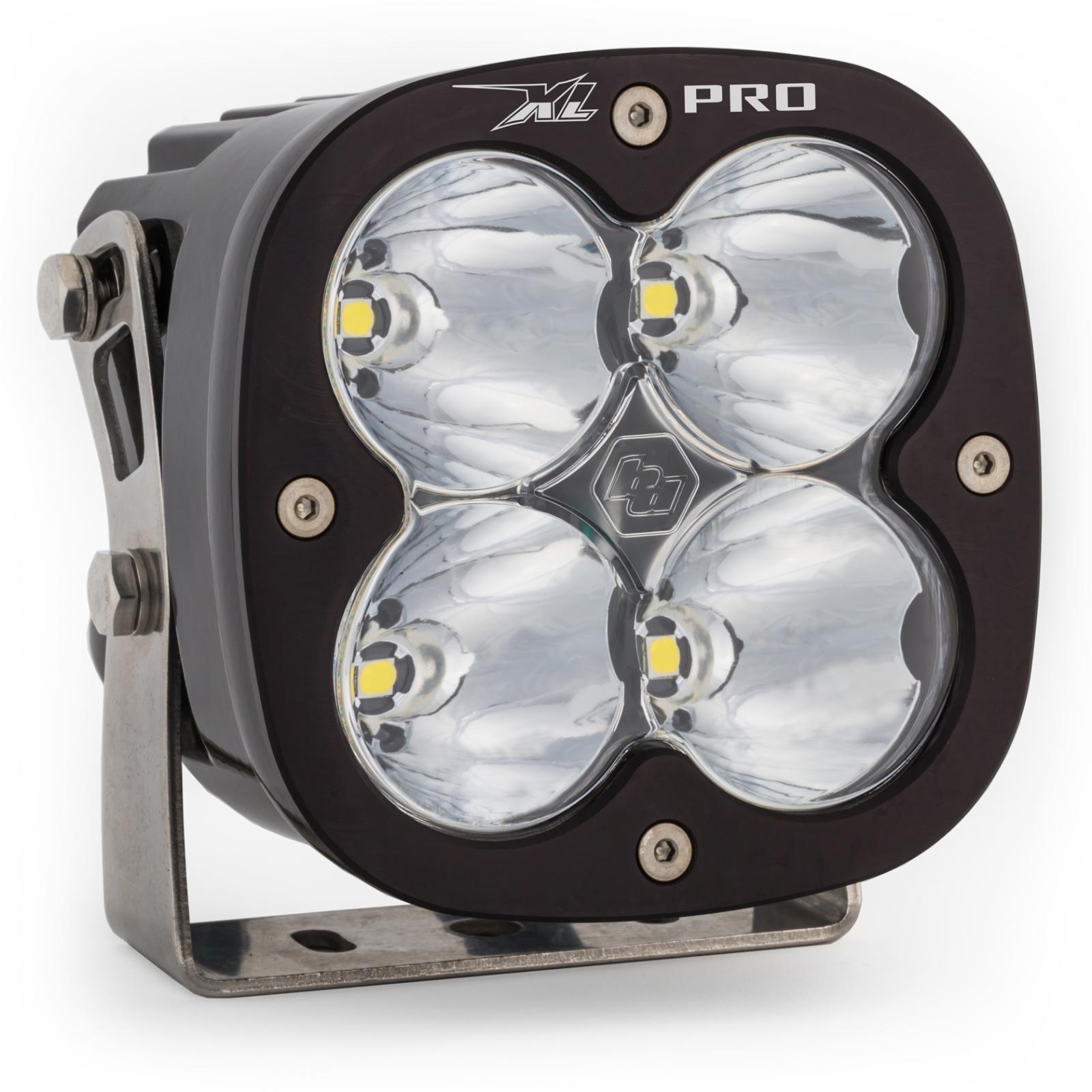

Spot: Focused 9° beam for long-range visibility; best when paired with other beams.

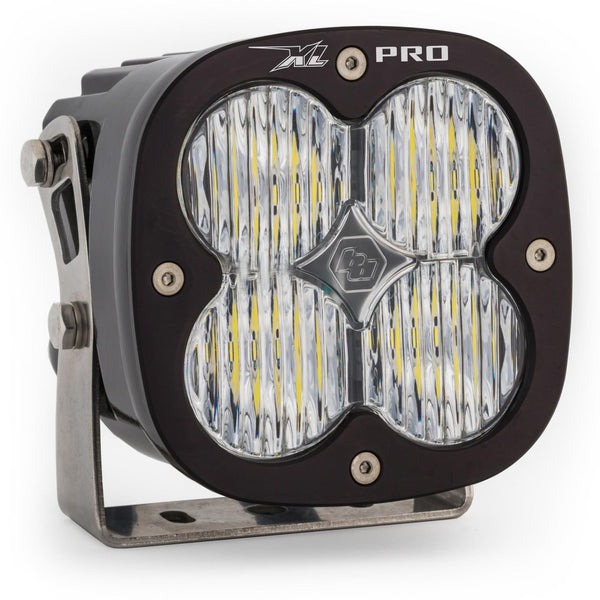

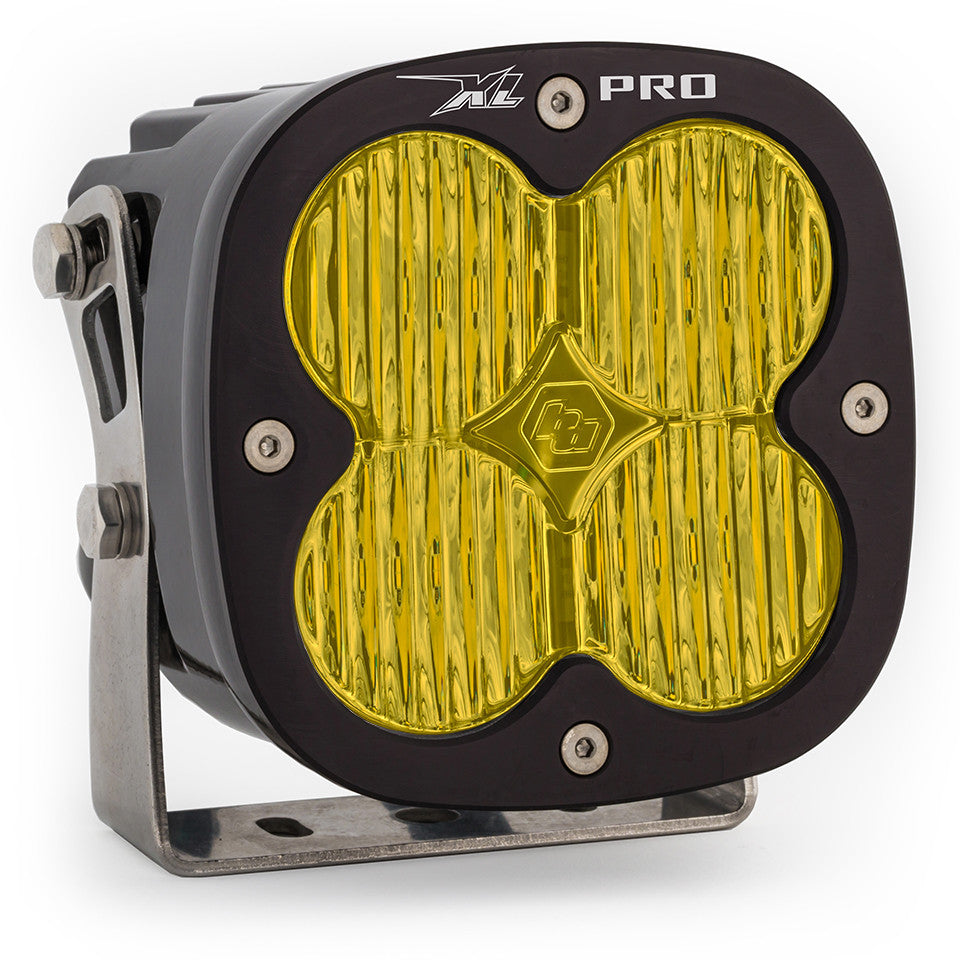

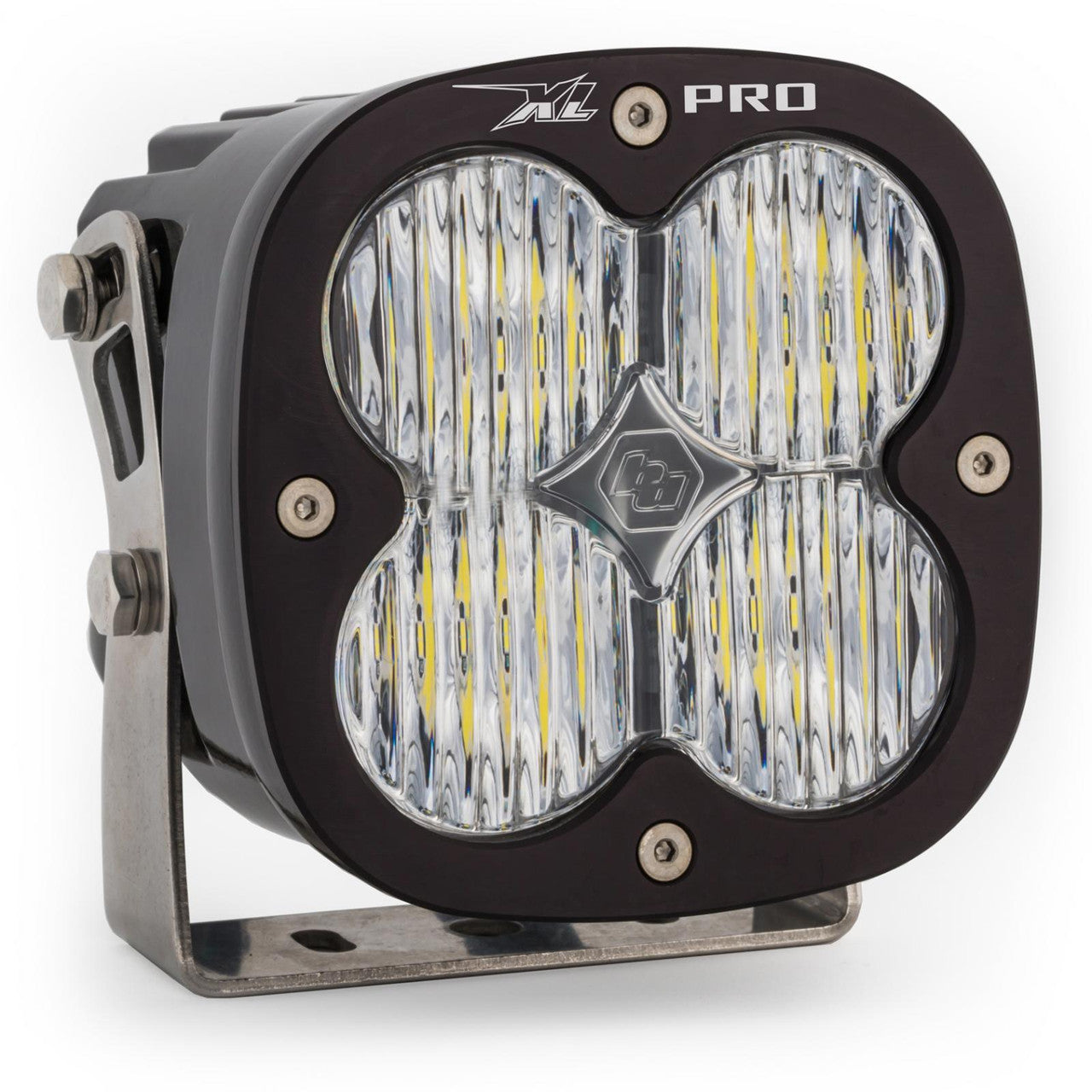

Wide Cornering: 42° horizontal beam that enhances peripheral visibility, especially in harsh weather or tight trails.
• Performance & Protection
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses and Optics
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, rainproof, and submersible
CopperDrive – The only LED driven at 100% capacity
5000K Daylight – Reduces driver fatigue with natural color lighting
Key Specifications
Compatibility: Universal
Raw Lumens: 4,095
Beam Patterns: Driving Combo, Spot, Wide Cornering
Dimming: 20%
Mounting: XL hardware included
Harness: Not included (use 640115 or 640119)
Color Temperature: 5000K
Warranty: Limited Lifetime
