• Product Overview
The Baja Designs XL-R 80 auxiliary LED light takes your off-road lighting to the next level, offering superior visibility and increased brightness.
Using our trademarked high-speed spot reflectors, the XL-R 80 delivers a longer and wider beam pattern.
This powerful next-generation LED technology provides 18% greater distance and increased intensity over our previous model, pushing an impressive 9,022 raw lumens per light.
Perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles.
• Design Features
Similar to the XL Pro model, the XL-R 80 features a 20% dimming option, a powder-coated housing, and an anodized bezel.
Designed for those seeking reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
• Note on Wiring
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640115.
• ELS™ Scores
XL80 Driving Combo (Clear): ELS 62° / 5.0 / 392' / 8278
XL80 Wide Cornering (Clear): ELS 66⁰ / 6.1 / 202' / 8063
• Lens Pattern Options
Driving Combo: Equipped with Driving (42°) and Spot (9°) optics for both near-field and distance illumination.
Wide Cornering: 42° horizontal beam for comfort lighting in cornering, dust, snow, rain, and fog conditions.
• Lens Color Options

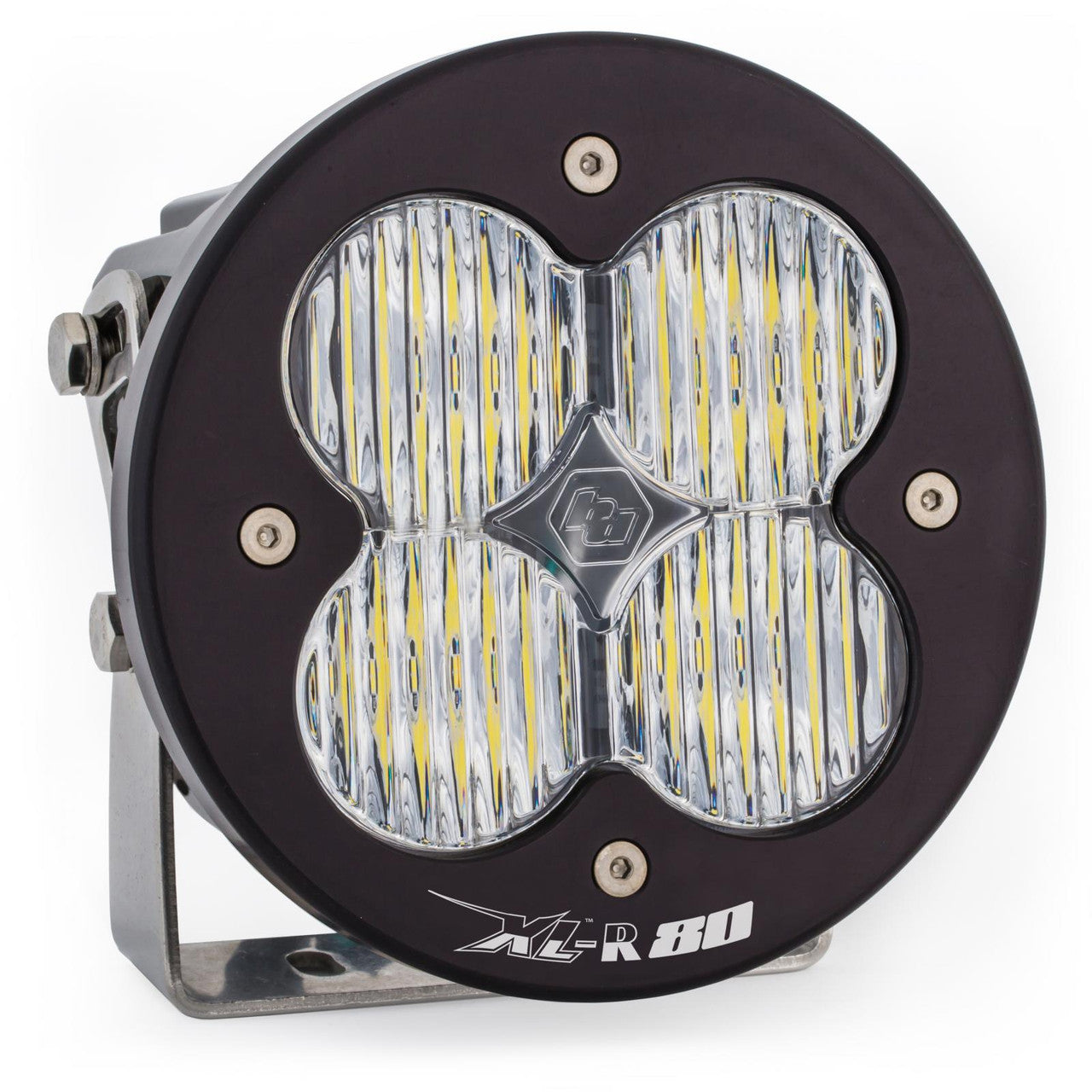

Clear: Closest to daylight (5000K), reduces driver fatigue, enhances terrain recognition.

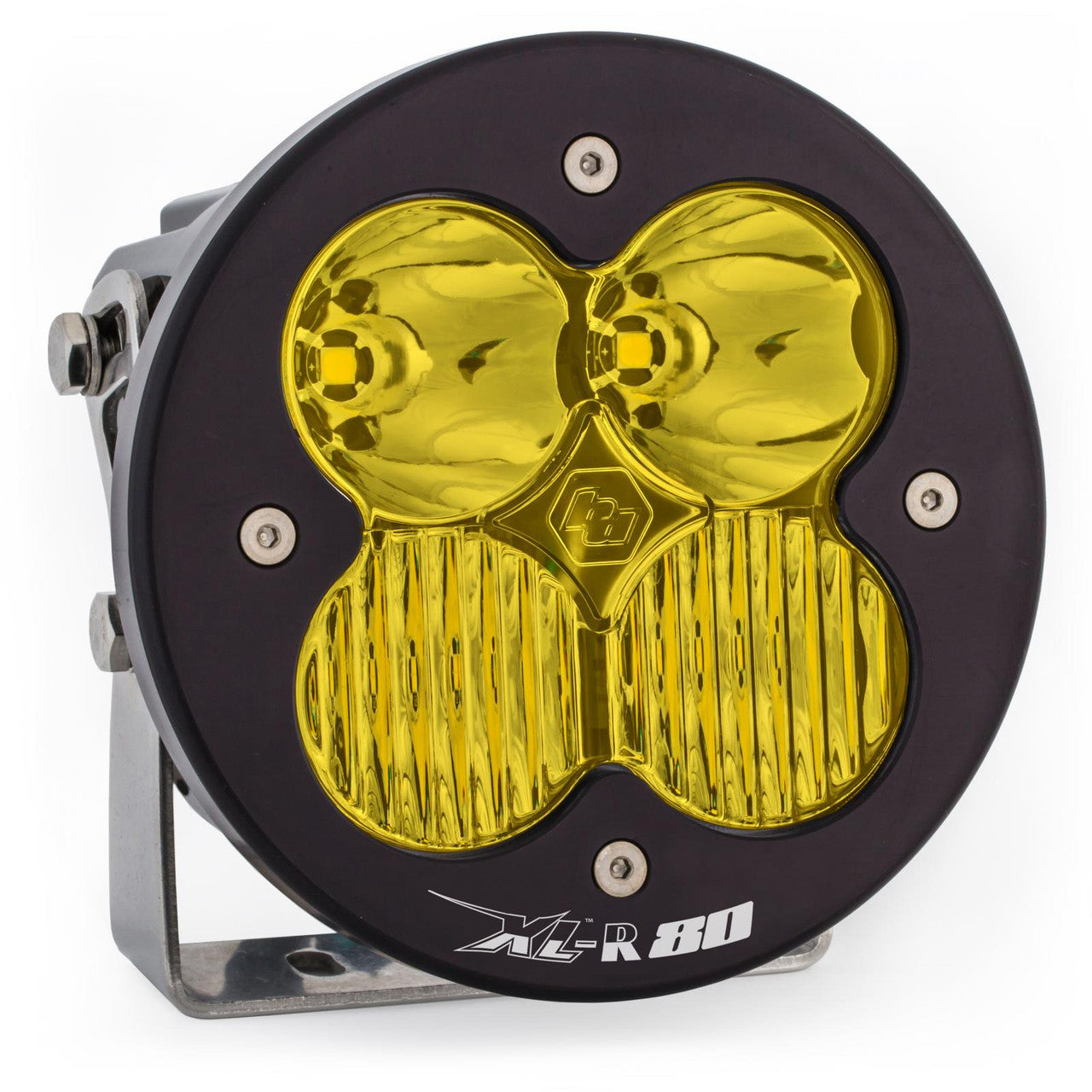

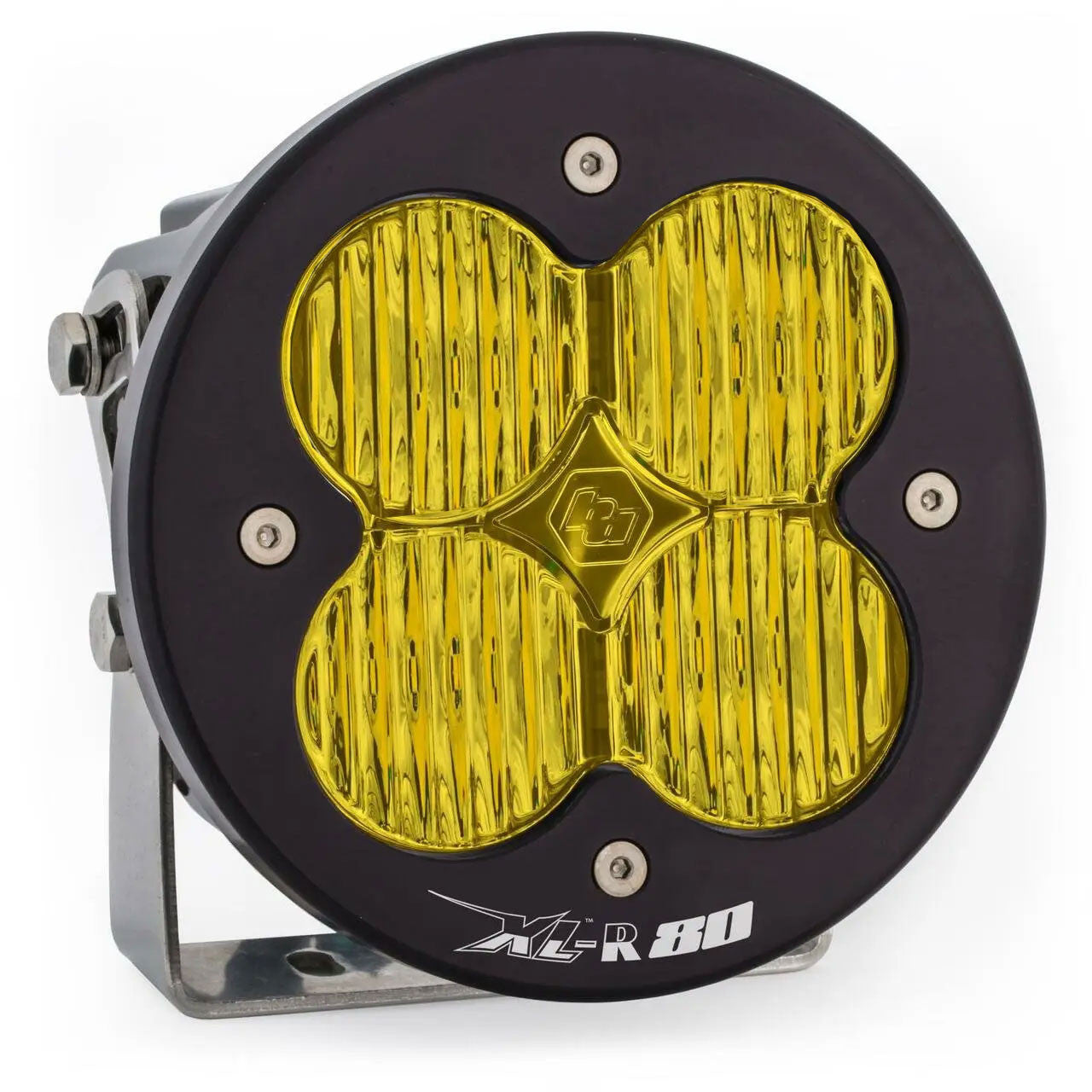

Baja Amber: Reduces glare, improves visibility in dust, rain, snow, or fog.
• Performance & Protection
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Key Specifications
Compatibility: Universal
Raw Lumens: 9,022
Lighting Patterns: Driving Combo, Wide Cornering
Lens Options: Clear, Baja Amber
Dimming: 20%
Harness: Not included (use 640115)
Color Temperature: 5000K
Warranty: Limited Lifetime
