• Product Overview
The Baja Designs XL-R Pro auxiliary light offers an exceptional balance of affordability and performance, making it the ideal choice for off-road enthusiasts.
Equipped with a round outer bezel, the XL-R Pro utilizes Baja Designs' trademarked high-speed spot reflectors, delivering a longer and wider beam pattern.
Featuring next-generation LEDs, this light outputs an impressive 4,095 raw lumens per light, providing the perfect auxiliary lighting for vehicles such as trucks, vans, UTVs, and motorcycles.
• Installation & Wiring
This single light kit comes with XL mounting hardware for quick and easy installation.
NOTE: This light does not come with a wiring harness. Compatible harness options:
– 640115 (On/Off 3-pin)
– 640119 (On/Off with Hi-Lo switch)
• ELS™ Scores
XL Pro Driving Combo (Clear): ELS 88° / 6.6 / 432' / 3764
XL Pro Spot (Clear): ELS 60° / 4.1 / 498' / 3228
XL Pro Wide Cornering (Clear): ELS 102° / 5.8 / 162' / 3363
• Lens Pattern Options

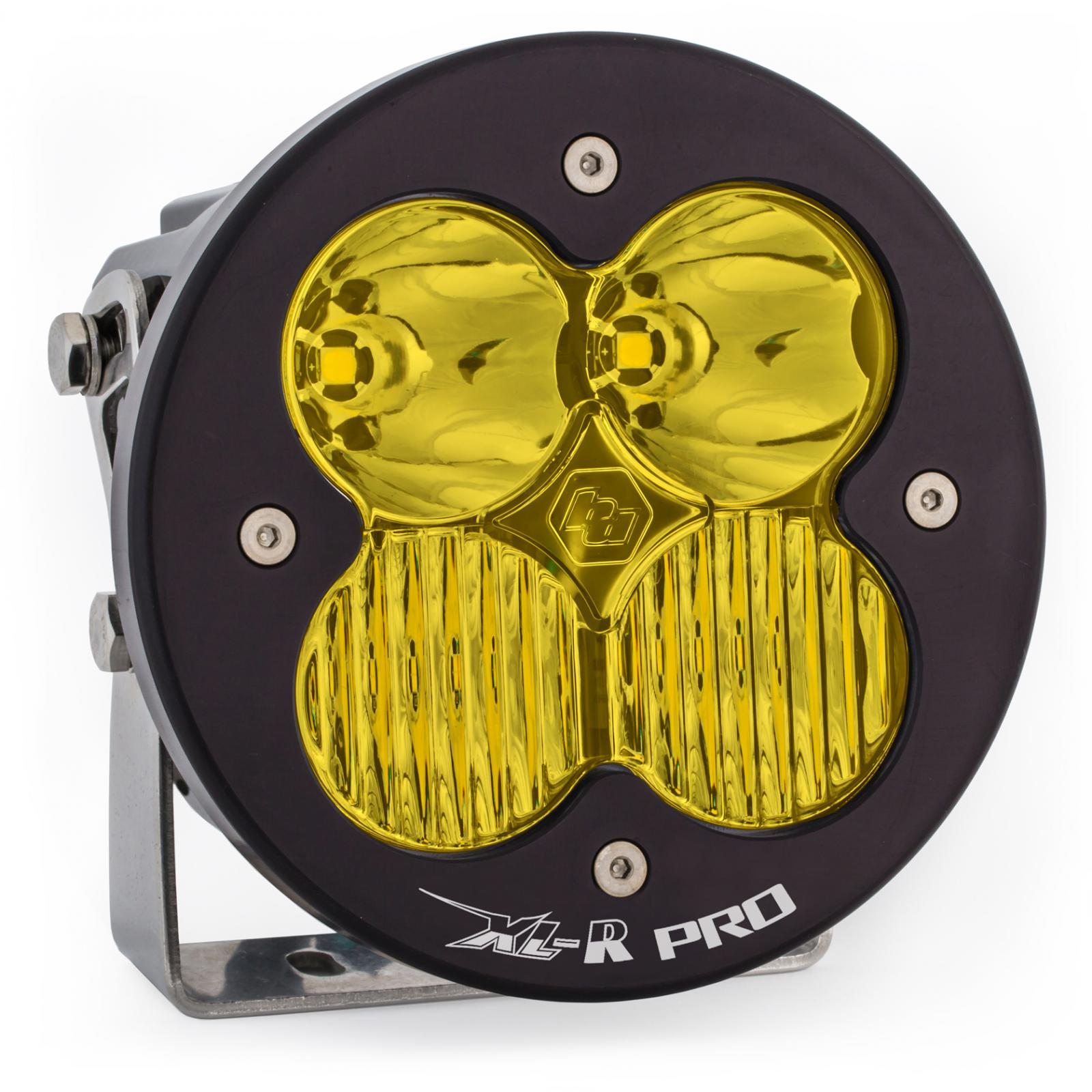

Driving Combo: Blends driving and spot optics for trail coverage from near-field (zones 1–2) to distance (zone 3).
Spot: Focused 9° beam for long-range visibility; best when paired with other beam types.

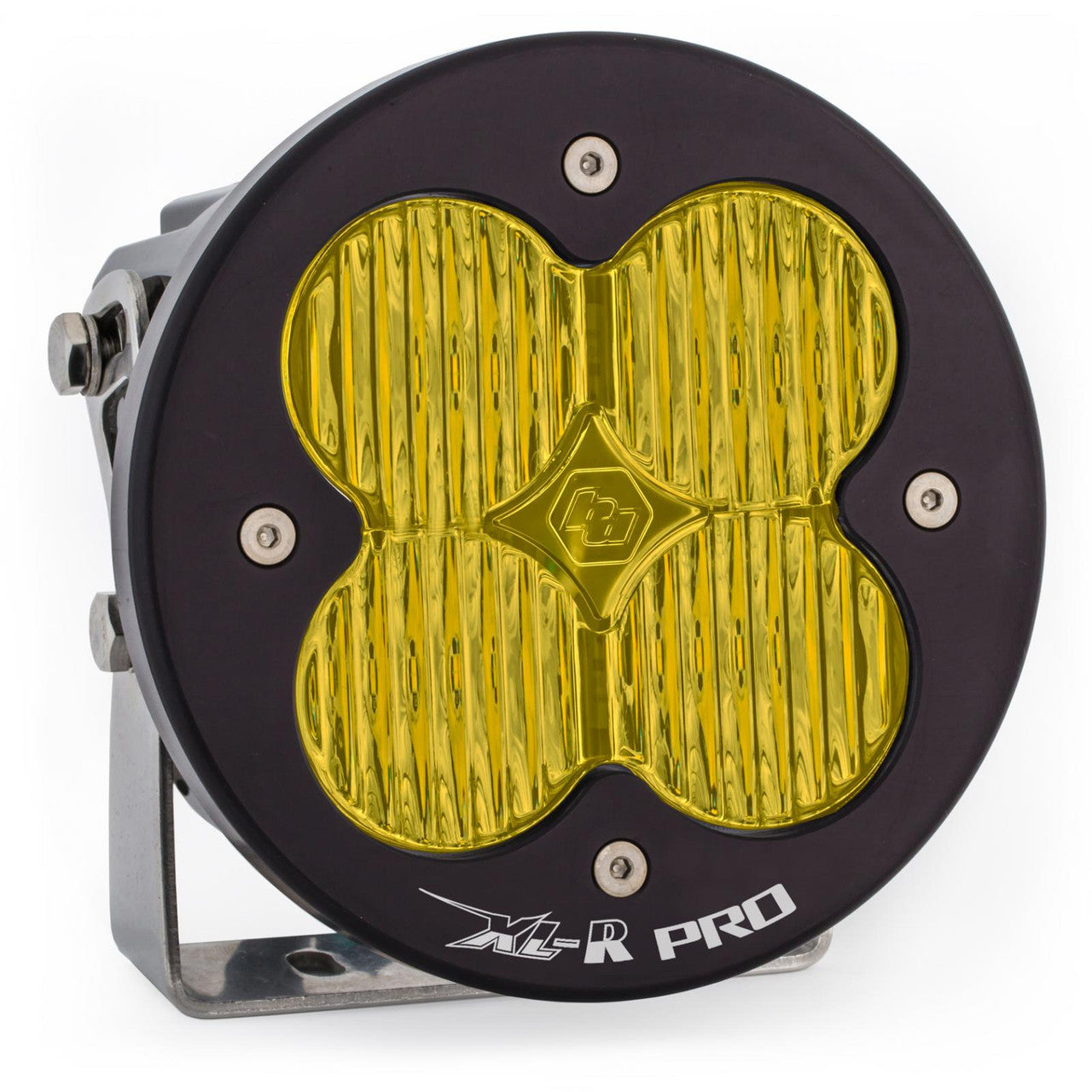

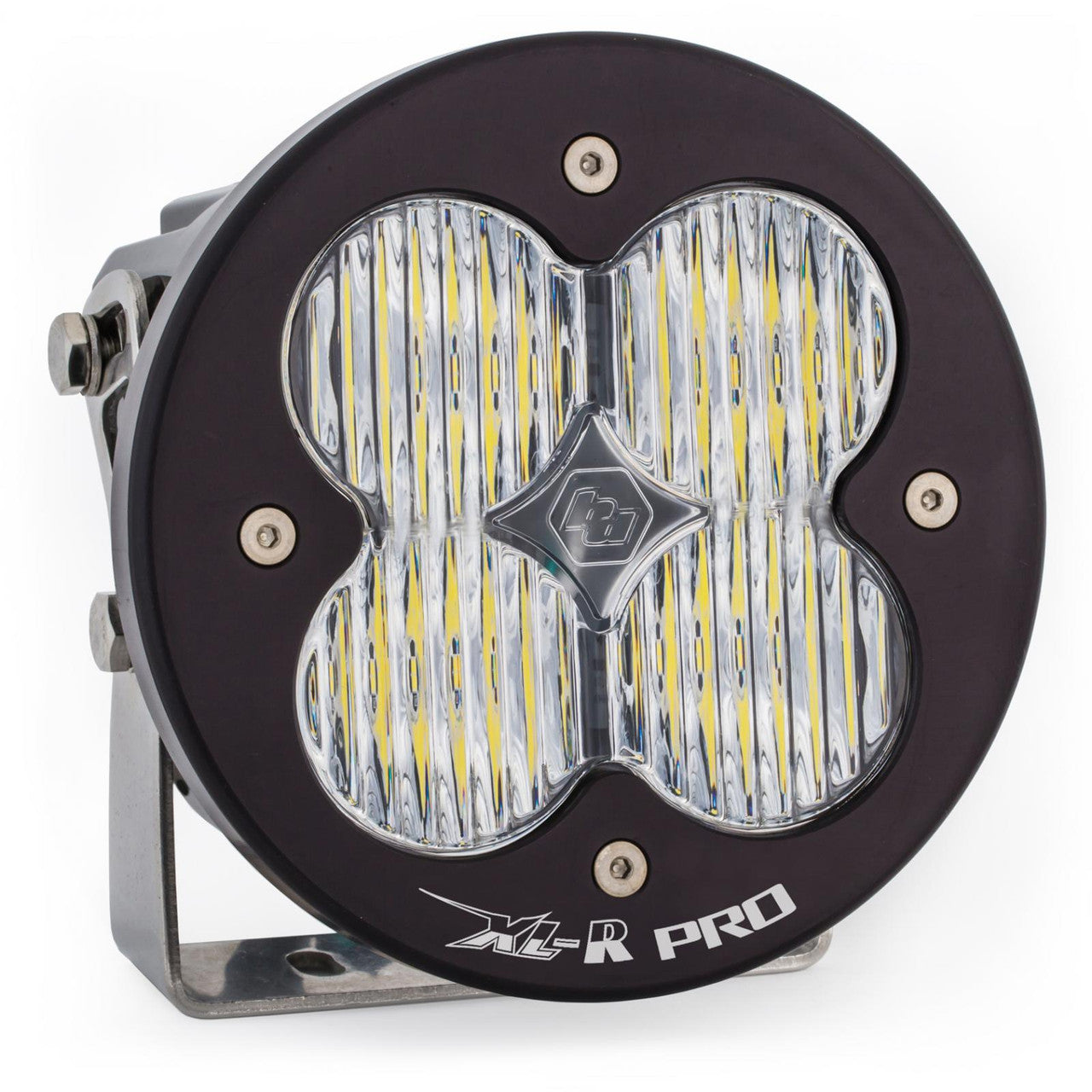

Wide Cornering: 42° horizontal beam for peripheral vision and control in tight, weathered, or wooded conditions.
• Performance & Protection
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses and Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, rainproof, and submersible
CopperDrive – The only LED driven at 100% capacity
5000K Daylight – Reduces driver fatigue with natural color lighting
Key Specifications
Compatibility: Universal
Raw Lumens: 4,095
Beam Patterns: Driving Combo, Spot, Wide Cornering
Mounting: XL mounting hardware included
Harness: Not included (use 640115 or 640119)
Color Temperature: 5000K
Warranty: Limited Lifetime
