EVOMFG JLU KING Front 2.5 Inch Double Throwdown Rear 2.5/3.0 Inch Coilover Bypass Triangulated Long Arm PRO PLUS, BLACK, 4 Door 2.0 or 3.6L or 392 JEEP WRANGLER

EVOMFG JLU KING Front 2.5 Inch Double Throwdown Rear 2.5/3.0 Inch Coilover Bypass Triangulated Long Arm PRO PLUS, BLACK, 4 Door 2.0 or 3.6L or 392 JEEP WRANGLER

Regular price $19,627.50 Sale price $18,646.13
Unit price  per

Currently in PRE PRODUCTION STATUS

Front
EVO SPEC KING 2.5 Inch Coilovers and Bypass with Air Bumps
 - Provides up to 14 inches of vertical wheel travel
 - Adjustable ride height without changing parts
 - Designed for use on aftermarket axles
 - Not recommended for vehicles with 3.6L E-Torque

Rear
EVO SPEC KING 2.5 Inch Coilovers and 3.0 Inch Bypass with Air Bumps
 - Provides up to 16 inches of wheel travel
 - Triangulated long arm design for improved articulation

Performance & Features
• High-performance front and rear coilover suspension system, tuned for a balance of on-road comfort and off-road capability
• Precision laser-cut and CNC press brake-formed 3/16” steel bracketry for optimal fitment
• Replacement heavy-duty adjustable control arms and trackbars for increased strength over factory components
• Proprietary EVO Spec King shock package, tailored and tested for Jeep JLU applications
• Adjustable ride height (approx. 3–5 inches lift) without changing parts
• No exhaust or driveshaft modification required for installation
• Designed for both daily driving and advanced off-road terrain

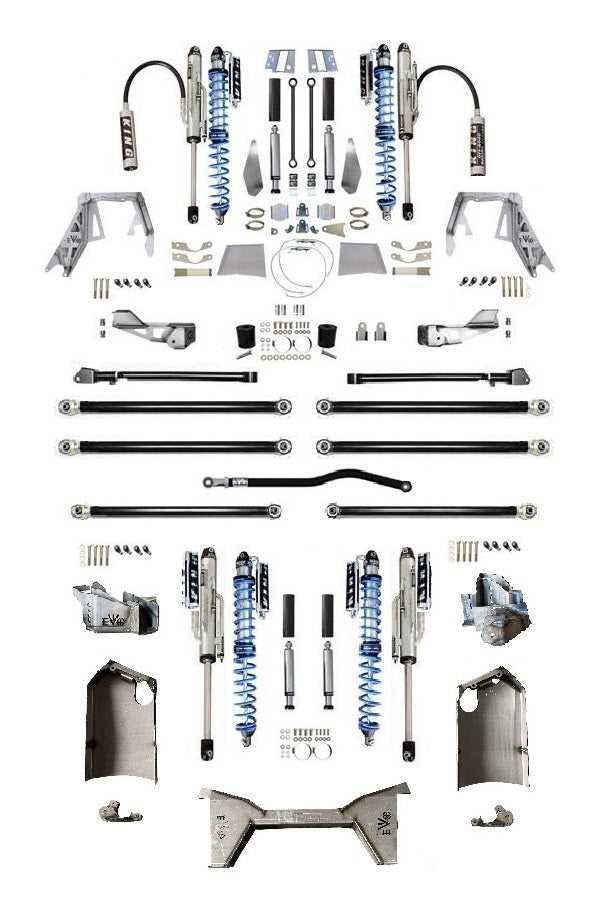

Parts Included
• Front Double Throwdown coilover/bypass mounting brackets
• Front EVO Spec 2.5” remote reservoir coilovers by King Shock Technologies (pair)
• Front EVO Spec 2.5" bypass shocks by King Shock Technologies (pair)
• Front shock/bypass mounting axle brackets (pair)
• Front upper and lower adjustable EVO long arms (pair)
• Rear triangulated upper and lower adjustable control arms with mounts
• Rear EVO Spec 2.5” remote reservoir coilovers by King Shock Technologies (pair)
• Rear EVO Spec 3.0" bypass shocks by King Shock Technologies (pair)
• Front adjustable HD trackbar

Long Arm Lower Control Arm Options
DOM Steel Tube Lower Control Arms – 2.0" x .25" wall DOM steel tube, powder-coated black
Aluminum Envy Links – Billet aluminum with replaceable steel skid plates, optional raw aluminum or gold anodizing

Requirements & Compatibility
• Recommended wheel backspacing: 3.75" or smaller
• Requires 70"+ aftermarket axles
• Not recommended for 4xE models
• Fuel system modifications required (not included)
• Rear body trunk area modification required (shock towers intrude into trunk space)
• Compatible years: 2018–2024 Jeep Wrangler JLU, all models including 392 (excludes 4xE)

Labor Hours
• Estimated 60 hours
