FITS
All JL (2018+) and JT (2020+) models including Sport, Mojave, Rubicon, 4xE, Willys, Sahara, Freedom, High Altitude
Not compatible with EVO Double Throwdown Systems
• Purpose & Function
Front Track bar Steering Correction is a simple to install and effective steering upgrade for the Jeep Wrangler JL and Gladiator JT.
Designed to address suspension geometry issues and improve steering feel after lifting the vehicle.
• Bump Steer Correction
Lifting disrupts the parallel geometry of the draglink and trackbar—this misalignment is the primary cause of bump steer.
This kit realigns the draglink and trackbar at 2.5"+ lift height, correcting the geometry and reducing bump steer significantly.

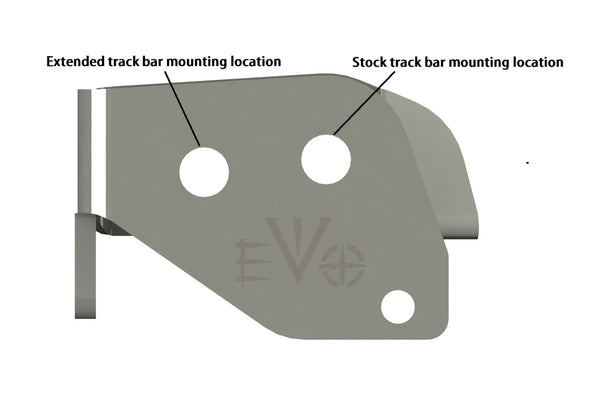

• Dual Mounting Locations
• First Location: Re-centers axle using a stock track bar (cost-effective option), while reducing bump steer.
• Second Location: Requires an adjustable track bar. Re-centers axle and increases track bar length to further minimize bump steer by an additional 20%.
• Improved Roll Center
Raising the track bar at the axle improves the vehicle’s roll center, reducing body roll and improving handling.
• Installation
Installation Time: 1–2 hours
Bolt-on with two small drilled holes required.
Key Specifications
Compatible Vehicles: JL 2018+ / JT 2020+
Lift Requirement: 2.5”+
Mounting Options: Stock Trackbar / Adjustable Trackbar
Improves: Steering Geometry, Roll Center, Axle Centering
Installation Time: 1–2 hours
Installation Type: Bolt-on (2 holes to be drilled)
Compatibility Note: Not for use with EVO Double Throwdown Systems
