EVOMFG Jeep Wrangler 392 3-5 Inch Lift King 2.5 Inch Coilover Pro Suspension Systems (4-Door)

$63,515.00 $60,339.25

Shocks

King Coilovers King Coilovers with Compression Adjusters

Stage

STAGE 3 STAGE 4 HIGH CLEARANCE LONG ARM HIGH CLEARANCE LONG ARM ENVY LINKS RAW ALUMINUM HIGH CLEARANCE LONG ARM ENVY LINKS GOLD ANODIZED

Track Bars

Front / Rear Track Bars

Quantity

Vehicle Fitment
Jeep Wrangler JLU 392 (Sport, Sahara, Rubicon, Moab, 392) — 2018-2025

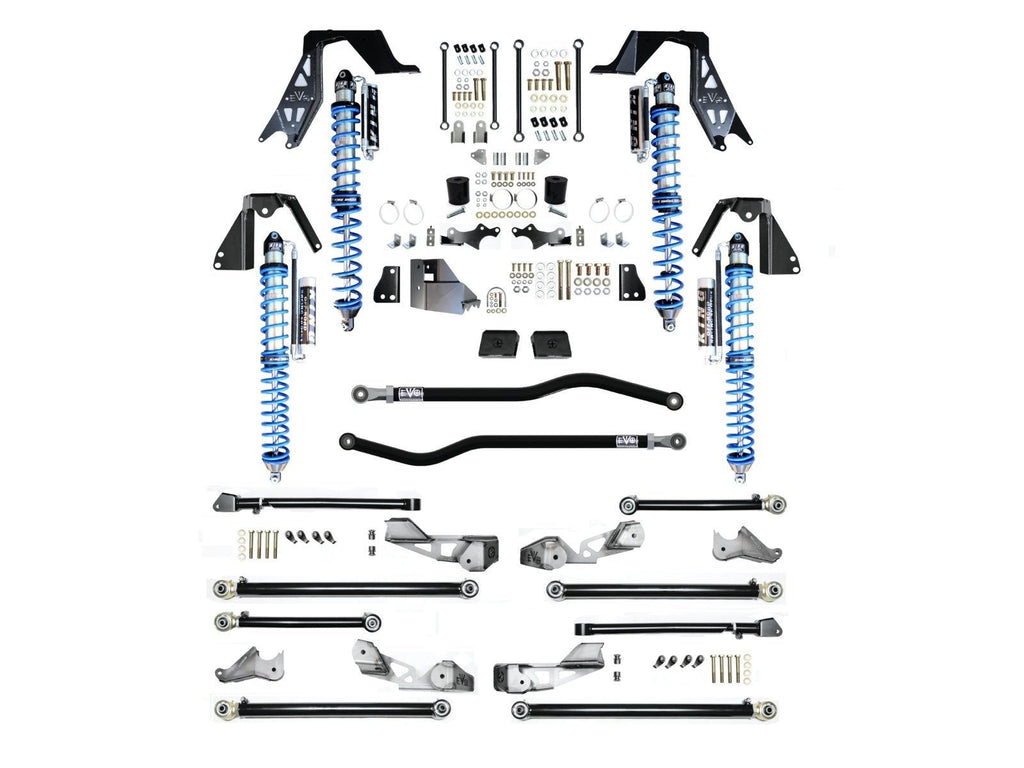

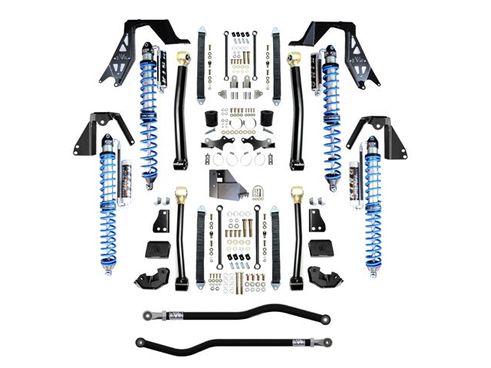

• Stage 1 Kit
Includes essential components to convert JL suspension to front and rear coilovers.

• Stage 2 Kit
Adds EVO MFG Enforcer JL Front Lower Adjustable Control Arms for caster adjustments. Recommended minimum for stock/unmodified JLUs.

• Stage 3 Kit
Includes Stage 2 components plus EVO MFG Enforcer Rear Upper Adjustable Control Arms for rear pinion angle adjustment. Recommended minimum for JLs with aftermarket rear driveshafts.

• Stage 4 Kit
Includes Stage 1 components plus all 8 EVO MFG Enforcer Control Arms for full axle adjustments.

• Long Arm Lower Control Arm Options

DOM Steel Tube Lower Control Arms: 2.0 x .25 wall DOM steel, powder coated black.
Aluminum Envy Links: Billet aluminum with replaceable steel skid plates, available raw or gold anodized.

• High-Performance Design

Low Center of Gravity with maximum wheel travel.

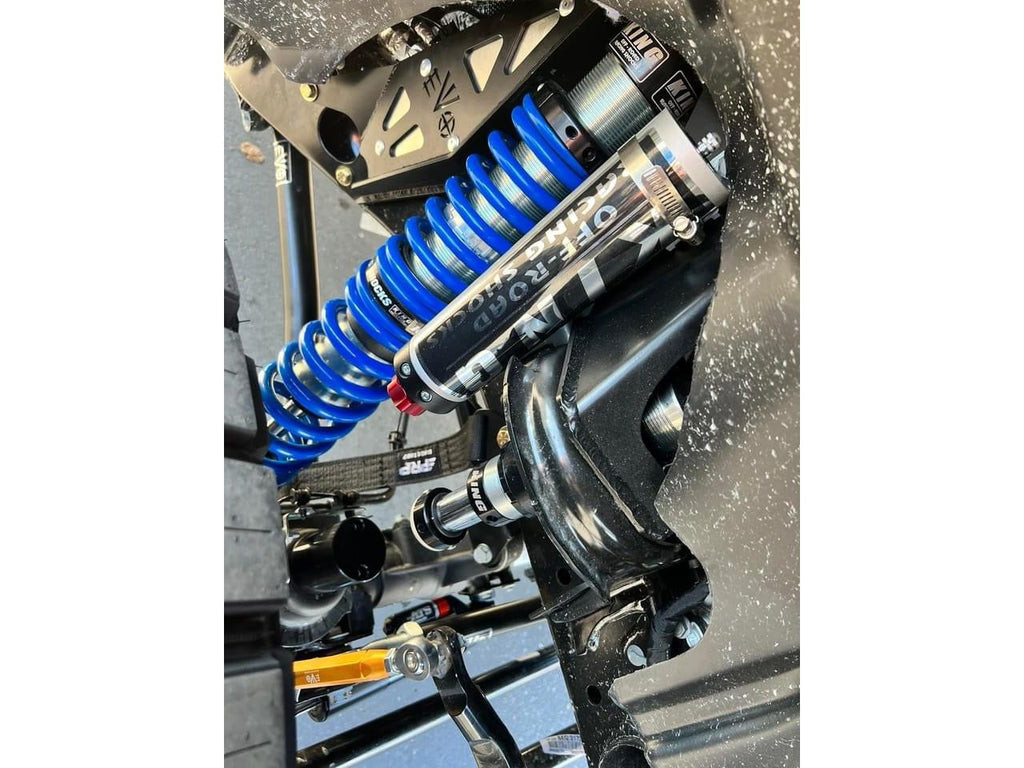

Custom King 2.5” Diameter Long Travel Remote Reservoir Coilovers.
Optimized shock mount placement for improved clearance and longer travel.
Reinforced upper and lower mounts for rear coilover setup.

• Enforcer PRO Specs

11.5"/12” wheel travel with adjustable 3-5” lift.
Includes brake line provisions, bump stop extensions, sway bar end links, limit straps, and hardware.
Bolt-on installation (some cutting/drilling required).
PLUS kits include adjustable front and rear trackbars.
Factory front driveshaft compatible (aftermarket optional).

• High Clearance Long Arm PRO Specs

Unlimited 14.5” wheel travel with adjustable 3-5” lift.
Bolt-on and weld-on installation (some cutting/drilling required).
PLUS kits include adjustable front and rear trackbars.
Front aftermarket driveshaft required for full travel.

• Suspension Type
4-Link Front and Rear Suspension System

• Recommended Upgrades
EVO-3098VD Front Inner Fenders
EVO-600081KB Front Air Bumps
EVO-600179KB Rear Air Bumps
EVO-600132 Front Stainless Steel Brake Lines
EVO-600133 Rear Stainless Steel Brake Lines

Key Specifications
Compatible Years: 2018-2025
Lift Range: Adjustable 3-5 inches
Wheel Backspacing: ≤ 3.75”
Labor Hours: 24-35 (Long Arm PRO)
Surface Treatment: Anodizing (color may vary and fade over time)
