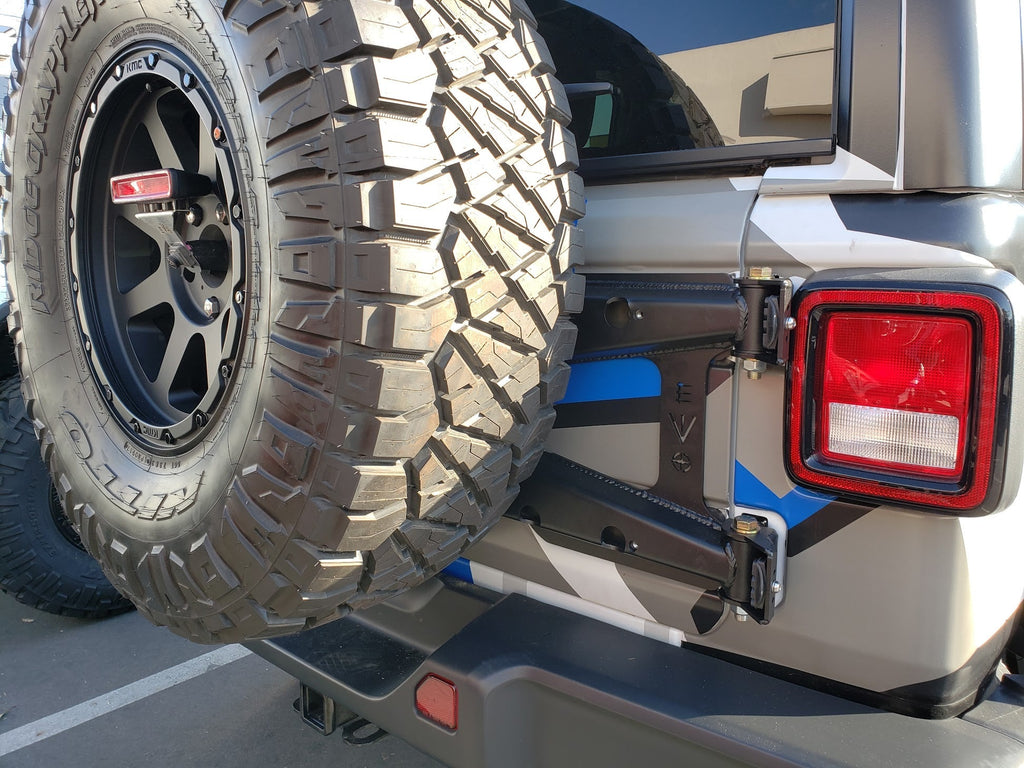

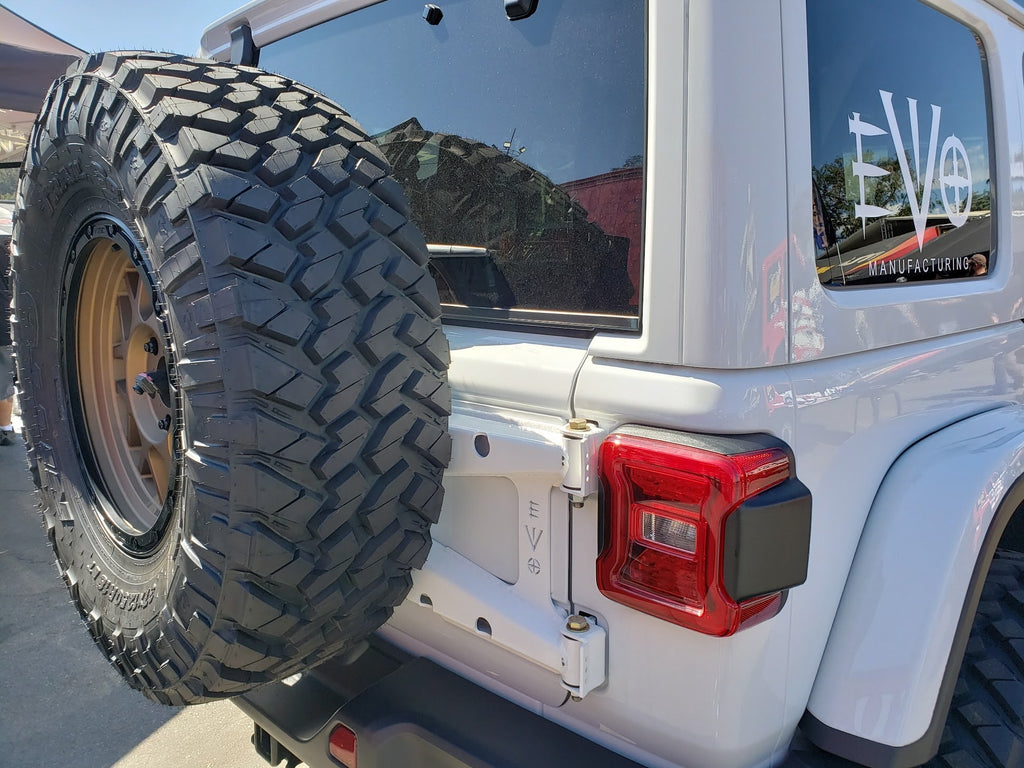

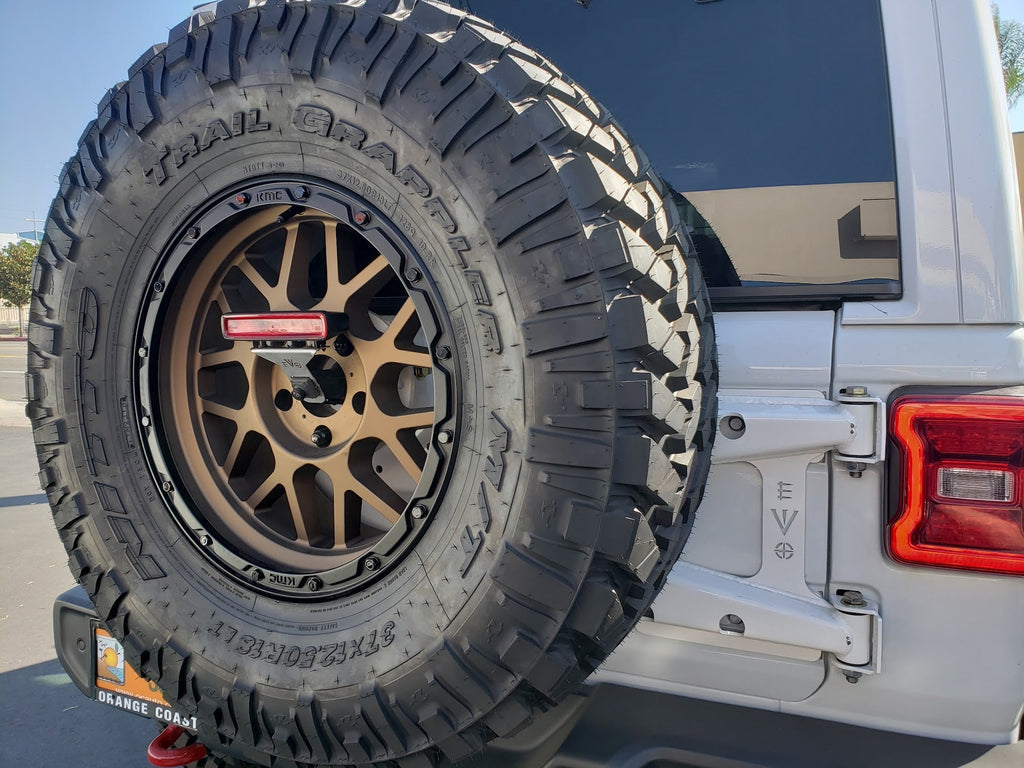

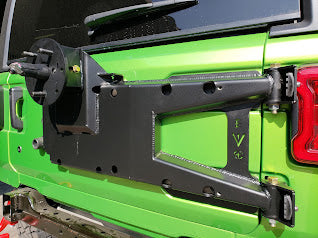

EVOMFG JEEP WRANGLER HEAVY DUTY HINGED SPARE TIRE CARRIER FOR JL/JLU

• Purpose-Built for Larger Tires

• Designed to carry up to a 40” tire while retaining easy one-handed tailgate access.

• Eliminates the factory tailgate’s weak load path by transferring weight directly to reinforced hinges.

• Heavy-Duty Construction

• Made from 3/16” and 3/8" laser-cut steel, CNC press brake formed, and fully fixture welded.

• Hinge brackets feature gusseted reinforcements and integrated bump stops for tailgate support.

• Optimized Mounting & Load Transfer

• Mounting points align with factory body locations reinforced by internal steel gussets.

• Keeps a low-profile design that fits vehicle contours and positions the tire close to the body.

• Adjustable Tire Positioning

• Tire mount can move up/down and in/out for proper fitment, clearance, and visibility.

• Integrated antenna mount for convenience.

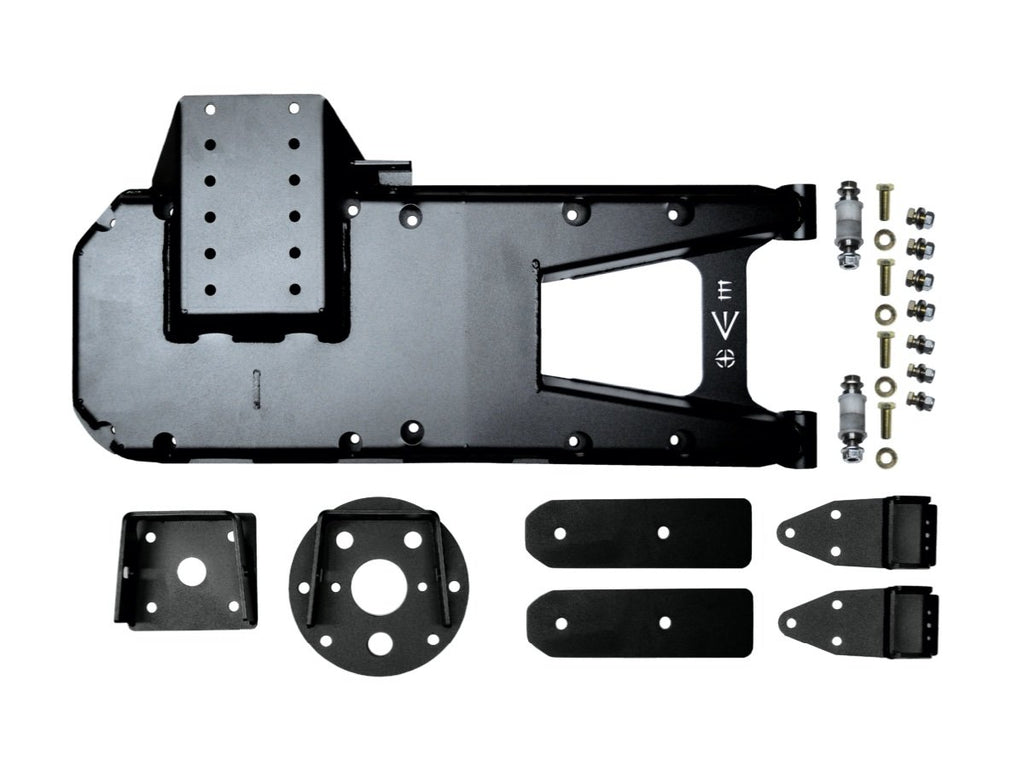

• Easy Bolt-On Installation

• Installs with basic tools, no drilling or cutting required.

• Includes wheel mount in stock 5x5 pattern (convertible by installer to 8x6.5 for aftermarket axles).

• Finish Options

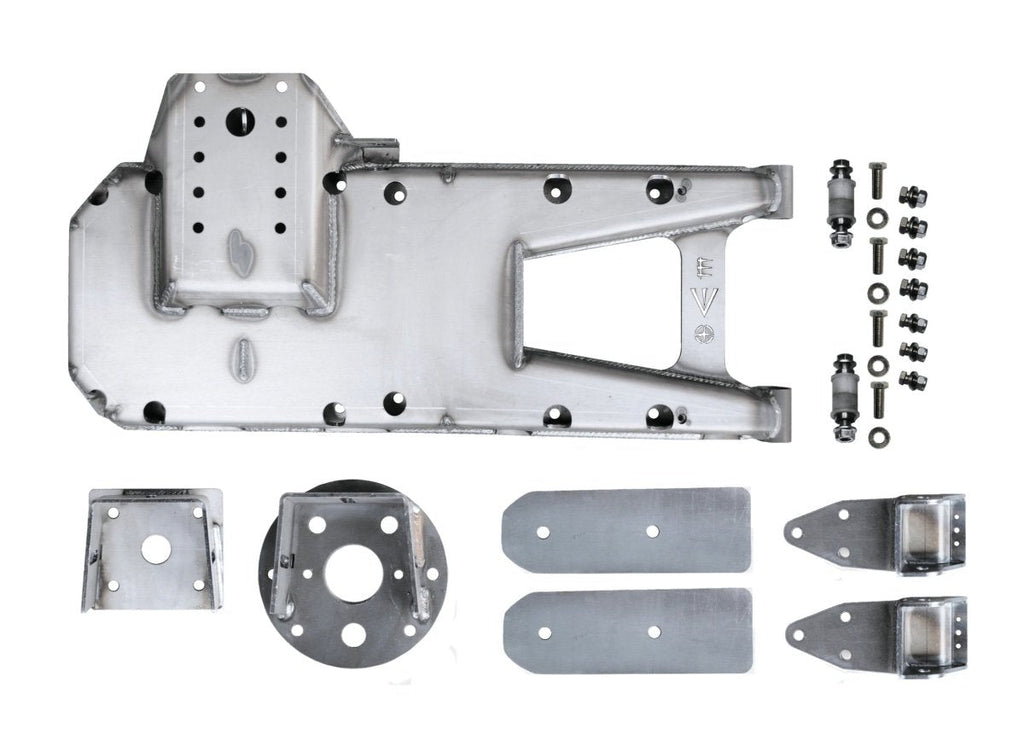

• Available in powder-coated finish (not covered under warranty) or raw metal for custom local treatment.

• Compatibility

• Works with factory rear reverse camera and 3rd brake light.

• Compatible with all Jeep Wrangler JL/JLU models from 2018–2025.

Key Specifications
Installation Time: 2–4 hours
Material: 3/16” and 3/8” steel
Maximum Tire Size: 40"
Wheel Pattern: Stock 5x5 (convertible to 8x6.5)
Compatibility: JL/JLU 2018–2025
