EVOMFG 392 KING Front 2.5 Inch Double Throwdown Rear 2.5 Inch Coilover Bypass HC Long Arm PRO PLUS, BLACK, 4 Door

FITS: Jeep Wrangler JL and JLU 392 High Clearance | Compatible Year: 2018–2025

• High-Performance Suspension System
Designed for drivers who want to go fast, with up to 14 inches of vertical wheel travel specifically tuned for Jeep JLU.
Utilizes EVO SPEC Front Bolt-On Coilover plus additional bypass shock for full external damping adjustability and position-sensitive zones.

• Premium Coilover & Bypass Shocks
Includes EVO Spec King 2.5" Coilovers and 2.5" Bypass Shocks, featuring proprietary spring rates and valving.
Adjustable ride height from approximately 3" to 5" without changing parts.

• Heavy-Duty Construction
All bracketry precision laser cut from 3/16” steel, CNC press brake formed for precision and installer fitment.
Kit includes heavy-duty control arms and adjustable front/rear trackbars for superior strength over factory components.

• On-Road & Off-Road Performance
Balanced for daily driving comfort and weekend wheeling.
Capable of advanced off-road terrain with EVO MFG’s controlled, performance-oriented ride.

• Ease of Installation
Designed for installation by experienced individuals or professional shops within a few days.
No exhaust or driveshaft modifications needed for standard setup (Front aftermarket driveshaft required).

• Long Arm Lower Control Arm Options

• DOM Steel Tube Lower Control Arms: 2.0 x .25 wall DOM steel tube links, powder-coated black.

• Aluminum Envy Links: Billet aluminum with replaceable steel skid plates; available in raw aluminum or gold anodized.

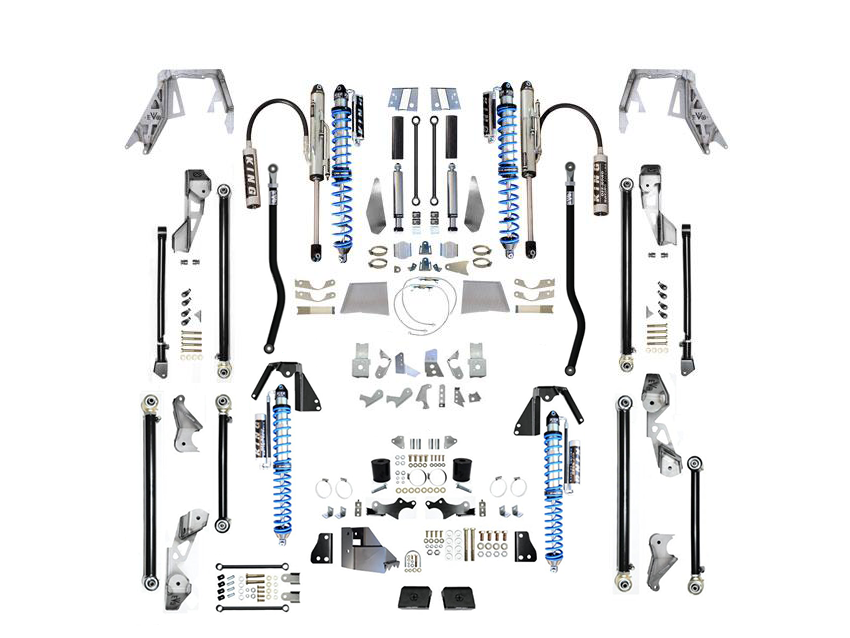

• Parts Included

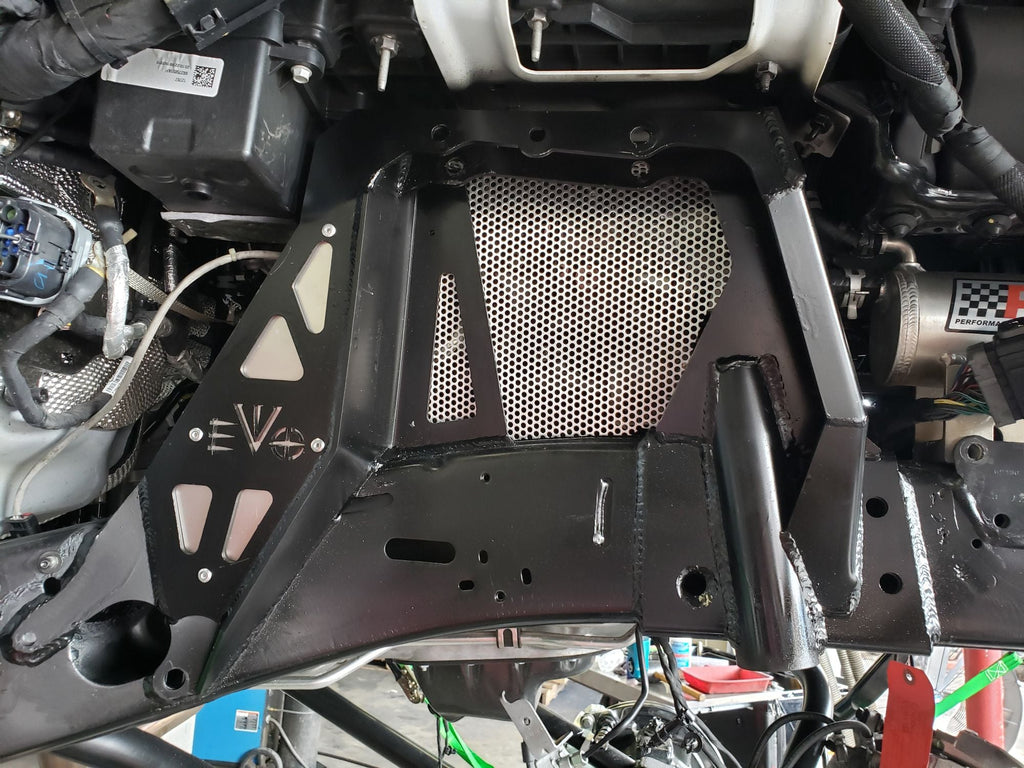

• Front Double Throw Down Coilover/Bypass Mounting Brackets

• Rear Bolt-On Coilover Mounting Brackets (Pair)

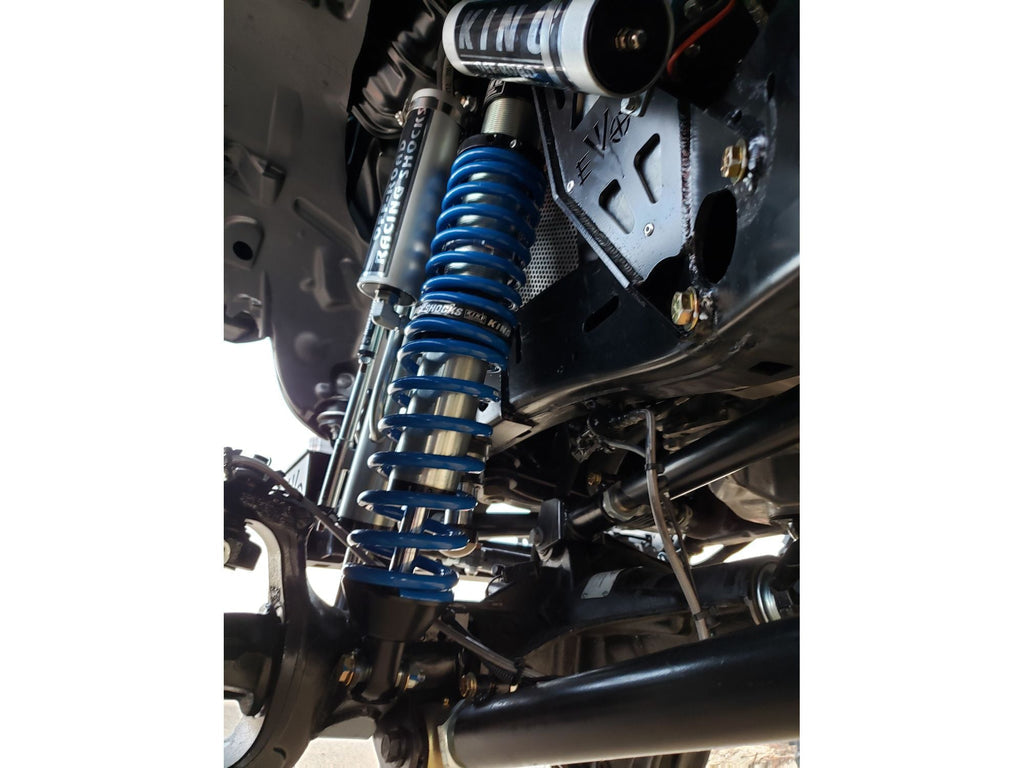

• Front & Rear EVO Spec 2.5” Remote Reservoir Coilovers (Pair)

• Front EVO Spec 2.5" Bypass Shocks (Pair)

• Front Shock/Bypass Mounting Axle Brackets (Pair)

• Front & Rear Sway Bar Endlinks (Pair)

• Front Upper & Lower Adjustable EVO Long Arms (Pair)

• Rear Upper & Lower Adjustable Enforcer Control Arms (Pair)

• Front & Rear Adjustable HD Trackbar

• Recommended

• Wheels with less than 3.75” backspacing

• Professional installation for 392 models due to engine bay adaptations

Key Specifications:
Lift Height: Adjustable 3–5 inches
Wheel Travel: Up to 14 inches
Material: 3/16” Steel Brackets, DOM Steel / Billet Aluminum Arms
Labor Hours: 31–45
Compatibility: Jeep Wrangler JL & JLU 392 (2018–2025)
Finish: Surface treatment color will vary and fade over time
