EVOMFG | JT (Gas) KING Front Double Throw Down 2.5 Inch KING Coilover Bypass + Rear Long Arm PRO PLUS JEEP GLADIATOR

FITS: Jeep Gladiator JT (Gas, Sport, Overland, Rubicon, Mojave – Front DTD not recommended for 3.6L E-Torque)

• Suspension Overview
EVO MFG JT Gladiator Double Throw Down (DTD) Pro Suspension System designed for maximum speed, articulation, and control.
Adjustable ride height of ~3 to 5 inches without changing or removing parts.
Up to 14" of vertical wheel travel tuned specifically for Jeep Gladiator JT Gas.

• Front Suspension – Double Throw Down
EVO Spec KING 2.5” front coilovers paired with additional bypass shocks for dual-shock performance.
Bypass shocks provide full external damping adjustability and position-sensitive performance.
Coilover/Bypass shocks come complete with EVO Spec King proprietary valving and spring rates.

• Rear Suspension
EVO Spec KING 2.5” coilovers engineered for balance and stability.
Tuned for both daily driving and advanced off-road terrain.

• Long Arm Upgrade
Specifically designed bracketry improves clearance, suspension geometry, and travel.
Front arms mount nearly flush with frame; rear arms half above bottom of frame for ideal angles.
Welding and grinding required; brackets bolt into factory holes for alignment then weld in place.
4-Link front and rear suspension system with Johnny Joints for unrestricted articulation.

• Build & Durability
All long arms constructed from 2.0” x .281” wall Steel DOM tubing.
Bracketry precision laser cut from 3/16” steel, CNC press brake formed.
Engineered for installer-friendly fitment and long-term strength.

• Control Arm Options
DOM Steel Tube Lower Control Arms: 2.0 x .25 wall DOM steel, powder coated black.
Aluminum ENVY Links: Billet aluminum with replaceable steel skid plates, available raw aluminum or gold anodized.

• Installation & Usability
Requires cutting and welding of frame brackets.
Recommended labor time: 33–43 hours.
Designed for professional shop installs or highly experienced DIY builders.

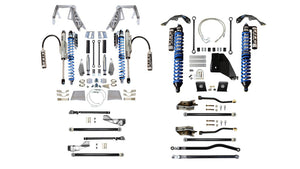

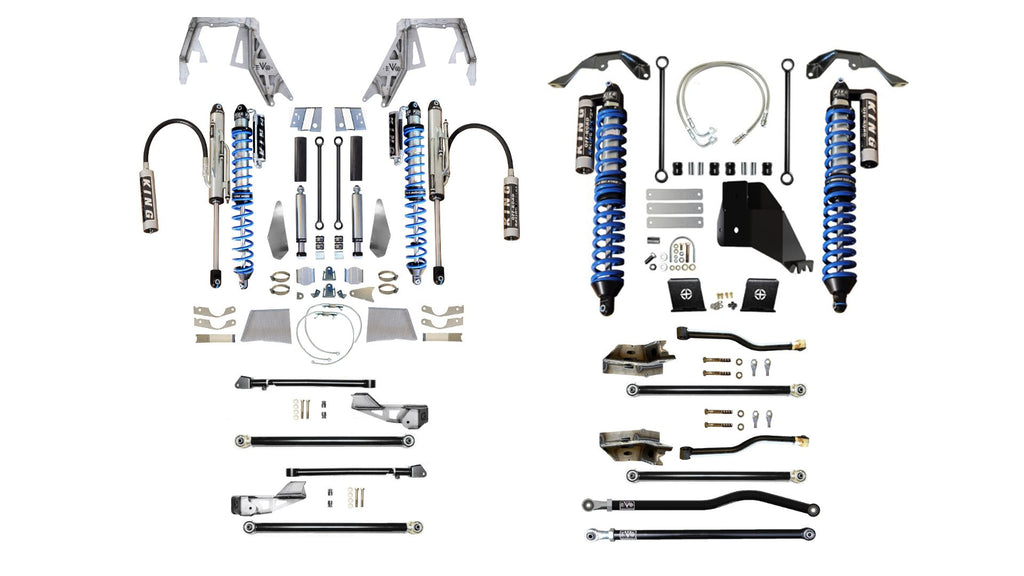

• Included Parts
Front Double Throw Down coilover/bypass mounting brackets
Rear bolt-on coilover mounting brackets (pair)
Front & rear EVO Spec 2.5” remote reservoir coilovers (pair)
Front EVO Spec 2.5” bypass shocks (pair)
Front shock/bypass mounting axle brackets (pair)
Front & rear sway bar endlinks (pair)
Front upper & lower adjustable EVO long arms (pair)
Rear upper & lower adjustable EVO long arms (pair)
Front & rear adjustable HD trackbars
Rear trackbar relocation bracket

• Recommended & Upgrades
Recommended: <3.75” backspacing wheels.
Not recommended for 3.6L E-Torque Jeeps.
Upgrades available: EVO-3099V Front Inner Fenders.
Check EVO-3092B-S60 page for additional notes.

Key Specifications
Product Type: Double Throw Down Front + Rear Coilover Long Arm Suspension System
Lift Height: Adjustable 3–5 inches
Wheel Travel: Up to 14" (front)
Vehicle Fitment: Jeep Gladiator JT (Gas – Sport, Overland, Rubicon, Mojave)
Control Arm Options: DOM Steel Tube or Billet Aluminum ENVY Links
Shock Package: EVO Spec 2.5” King Coilovers + King Bypass Shocks with proprietary tuning
Installation: Cutting and welding required; 33–43 labor hours
