EVOMFG | JT (Diesel) King 2.5 Inch Coilover Long Arm PRO PLUS GLADIATOR

FITS: Jeep Gladiator JT Diesel (Sport, Overland, Rubicon, Mojave)

• Suspension Overview
EVO MFG JT Gladiator Long Arm King Coilover Pro Suspension System for maximum ride quality and off-road performance.
Adjustable ride height of ~3 to 5 inches without changing or removing parts.
Up to 14" of vertical wheel travel, tuned specifically for Jeep JT Diesel.

• Front & Rear Coilovers
EVO Spec KING 2.5” remote reservoir coilovers with bypass shocks for damping adjustability.
Proprietary EVO Spec spring rates and valving by King Shocks Technologies.
Coilover system offers position-sensitive performance and increased control.

• Long Arm Upgrade
Specifically designed bracketry improves suspension geometry and chassis clearance.
Front arms mount nearly flush with frame for added clearance.
Rear mounting locations positioned for optimal clearance and ride quality.
Brackets align with factory holes, bolted then welded for precision installation.
4-Link front and rear suspension system with Johnny Joints for maximum articulation.

• Build & Durability
All long arms constructed from 2.0” x .281” wall steel DOM tubing for superior strength.
Bracketry laser cut from 3/16” steel, CNC press brake formed.
Welding, cutting, and grinding of frame brackets required.

• Control Arm Options
DOM Steel Tube Lower Control Arms: 2.0 x .25 wall DOM steel, powder coated black.
Aluminum ENVY Links: Billet aluminum with replaceable steel skid plates, available in raw aluminum or gold anodized.

• Installation & Usability
Designed for experienced DIY installers or professional shops.
No exhaust cutting required on Diesel and 3.6L Gladiators.
Provides long travel ability with optimized suspension geometry.

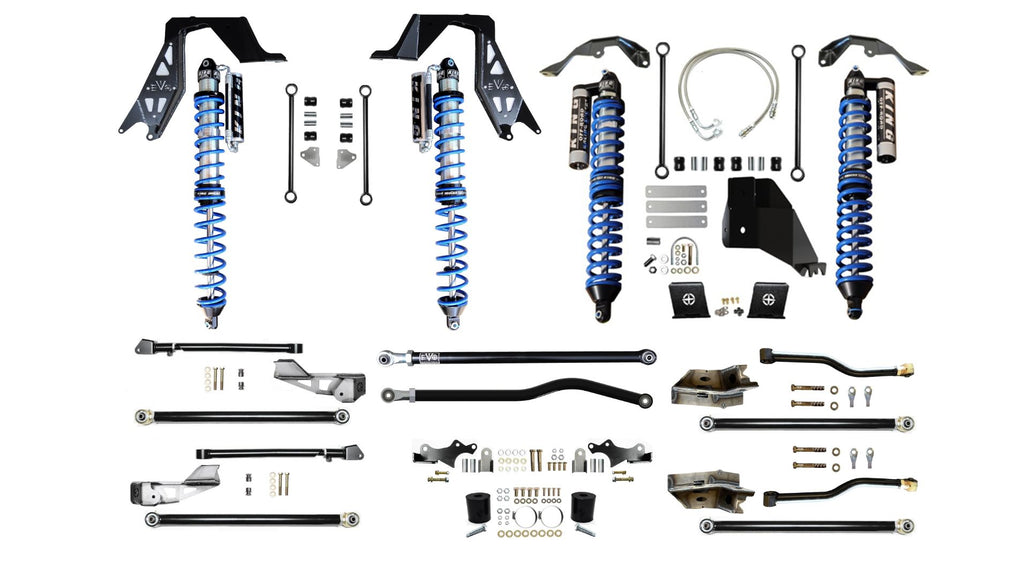

• Included Parts
Front King coilover mounting brackets
Rear bolt-on coilover mounting brackets (pair)
Front & rear EVO Spec 2.5” remote reservoir coilovers (pair)
Front shock mounting axle brackets (pair)
Front & rear sway bar endlinks (pair)
Front upper & lower adjustable EVO Long Arms (pair)
Rear upper & lower adjustable EVO Long Arms (pair)
Front & rear adjustable HD trackbars
Rear trackbar relocation bracket
JT rear axle swap kit

• Recommended & Upgrades
Recommended: <3.75” backspacing wheels.
Upgrades available: EVO-3098VD Front Inner Fenders, EVO-600081KB Front Air Bumps, EVO-600132 Front Stainless Steel Brake Lines.

Key Specifications
Product Type: Long Arm Coilover Suspension System
Lift Height: Adjustable 3–5 inches
Wheel Travel: Up to 14"
Vehicle Fitment: Jeep Gladiator JT Diesel (Sport, Overland, Rubicon, Mojave)
Control Arm Options: DOM Steel Tube or Billet Aluminum ENVY Links
Shock Package: EVO Spec 2.5” King Coilovers with proprietary spring rates/valving
Installation: Welding and cutting required
