EVOMFG | JT (Diesel) KING Front Double Throw Down + Rear 2.5 Inch KING Coilover Bypass LONG ARM PRO PLUS JEEP GLADIATOR

FITS: Jeep Gladiator JT Diesel (Sport, Overland, Rubicon, Mojave)

• Suspension Overview
EVO MFG JT Gladiator Double Throw Down (DTD) Pro Suspension System designed for maximum on-road comfort and off-road performance.
Adjustable ride height of ~3 to 5 inches without swapping or removing parts.
Provides up to 14" of vertical wheel travel tuned specifically for Jeep JT Diesel.

• Front Suspension – Double Throw Down
EVO Spec KING 2.5” coilovers paired with additional King bypass shocks for dual-shock performance.
Bypass shocks allow full external damping adjustability and position-sensitive control.
Coilover/Bypass shocks come complete with EVO Spec King proprietary spring rates and valving.

• Rear Suspension
EVO Spec KING 2.5” coilovers for stability and articulation.
Tuned to balance performance on advanced terrain with comfortable road manners.

• Long Arm Upgrade
Specifically engineered bracketry improves clearance, geometry, and long-travel ability.
Front arms mount tucked nearly flush with frame; rear arms positioned for optimal clearance.
4-Link front and rear suspension system with Johnny Joints for unrestricted articulation.
Brackets bolt into factory holes for alignment, then weld in place for strength.
Cutting, grinding, and welding required.

• Build & Durability
Long arms built from 2.0” x .281” wall Steel DOM tubing for extreme strength.
Bracketry precision laser cut from 3/16” steel, CNC press brake formed.
Designed for installer-friendly precision fit and long-term durability.

• Control Arm Options
DOM Steel Tube Lower Control Arms: 2.0 x .25 wall DOM steel, powder coated black.
Aluminum ENVY Links: Billet aluminum with replaceable steel skid plates, available raw aluminum or gold anodized.

• Installation & Usability
Intended for professional shop installation or highly experienced DIY mechanics.
Recommended labor time: 35–45 hours.

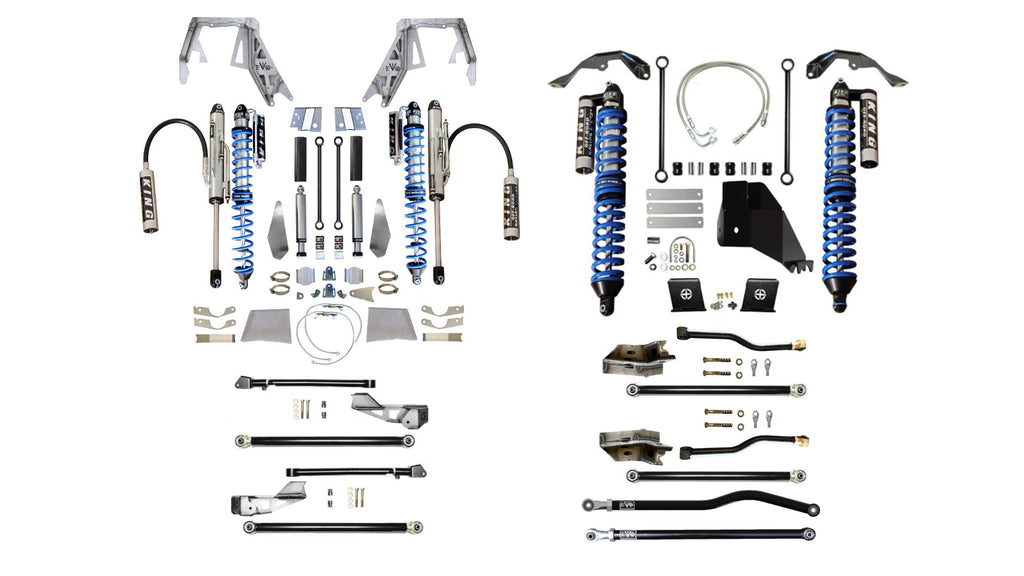

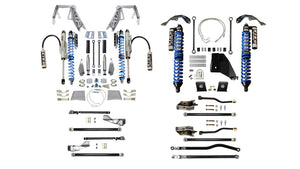

• Included Parts
Front Double Throw Down coilover/bypass mounting brackets
Rear bolt-on coilover mounting brackets (pair)
Front & rear EVO Spec 2.5” remote reservoir coilovers (pair)
Front EVO Spec 2.5” bypass shocks (pair)
Front shock/bypass mounting axle brackets (pair)
Front & rear sway bar endlinks (pair)
Front upper & lower adjustable EVO Long Arms (pair)
Rear upper & lower adjustable EVO Long Arms (pair)
Front & rear adjustable HD trackbars
Rear trackbar relocation bracket

• Recommended & Upgrades
Recommended: <3.75” backspacing wheels.
Upgrades available: EVO-3099VD Front Inner Fenders.
See EVO-3092B-S60 page for additional notes.

Key Specifications
Product Type: Double Throw Down Front + Rear Coilover Long Arm Suspension System
Lift Height: Adjustable 3–5 inches
Wheel Travel: Up to 14" (front)
Vehicle Fitment: Jeep Gladiator JT Diesel (Sport, Overland, Rubicon, Mojave)
Control Arm Options: DOM Steel Tube or Billet Aluminum ENVY Links
Shock Package: EVO Spec 2.5” King Coilovers + King Bypass Shocks with proprietary tuning
Installation: Cutting and welding required; 35–45 labor hours
