• Stabilizes Aggressive Steering Feedback
Designed to reduce wandering and harsh steering input caused by oversized off-road tires, keeping your front end tracking straight and controlled.
• IFP Mono-Tube Design
Internal Floating Piston separates oil from high-pressure nitrogen gas to eliminate aeration and provide consistent damping performance.
• Durable Heat-Dissipating Construction

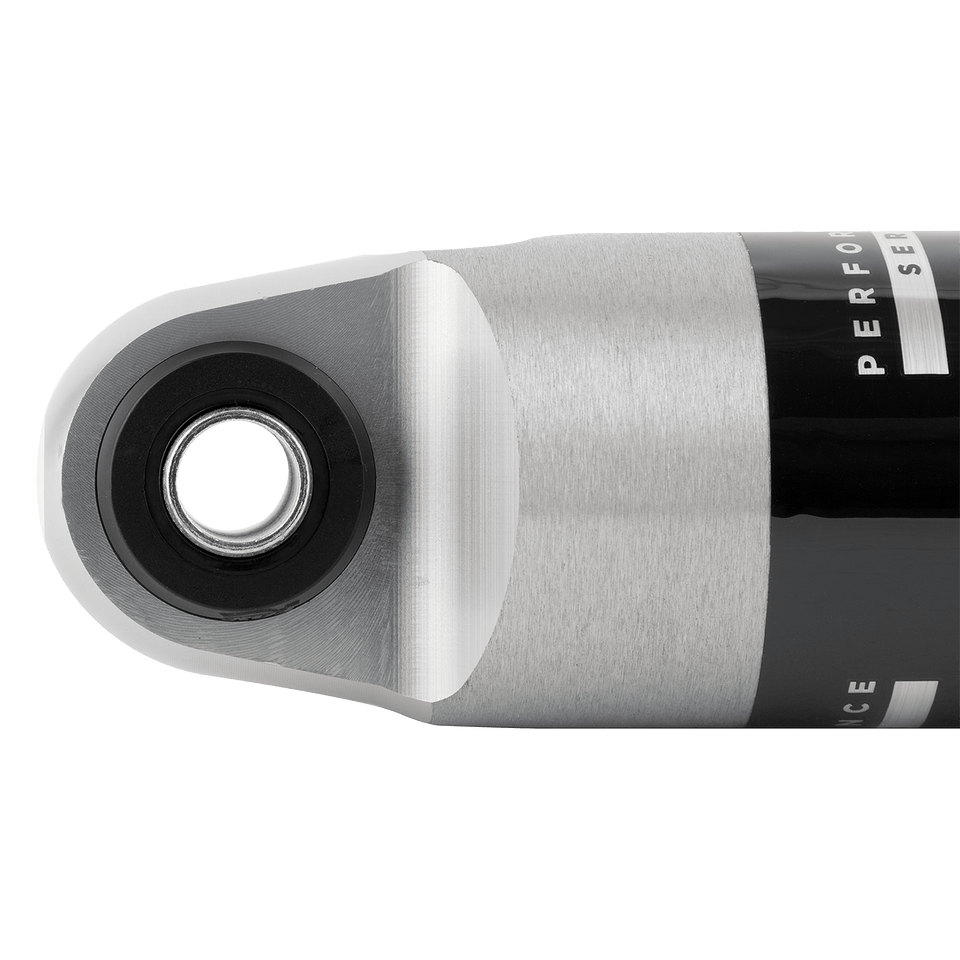

2.0" impact-extruded 6061-T6 aluminum body with clear anodized finish offers superior heat dissipation and long-term corrosion resistance.
• Race-Bred Damping Technology
Utilizes high-flow piston and application-specific valving developed from FOX’s Performance Series shocks to handle aggressive terrain and tire loads.
• High-Quality Components

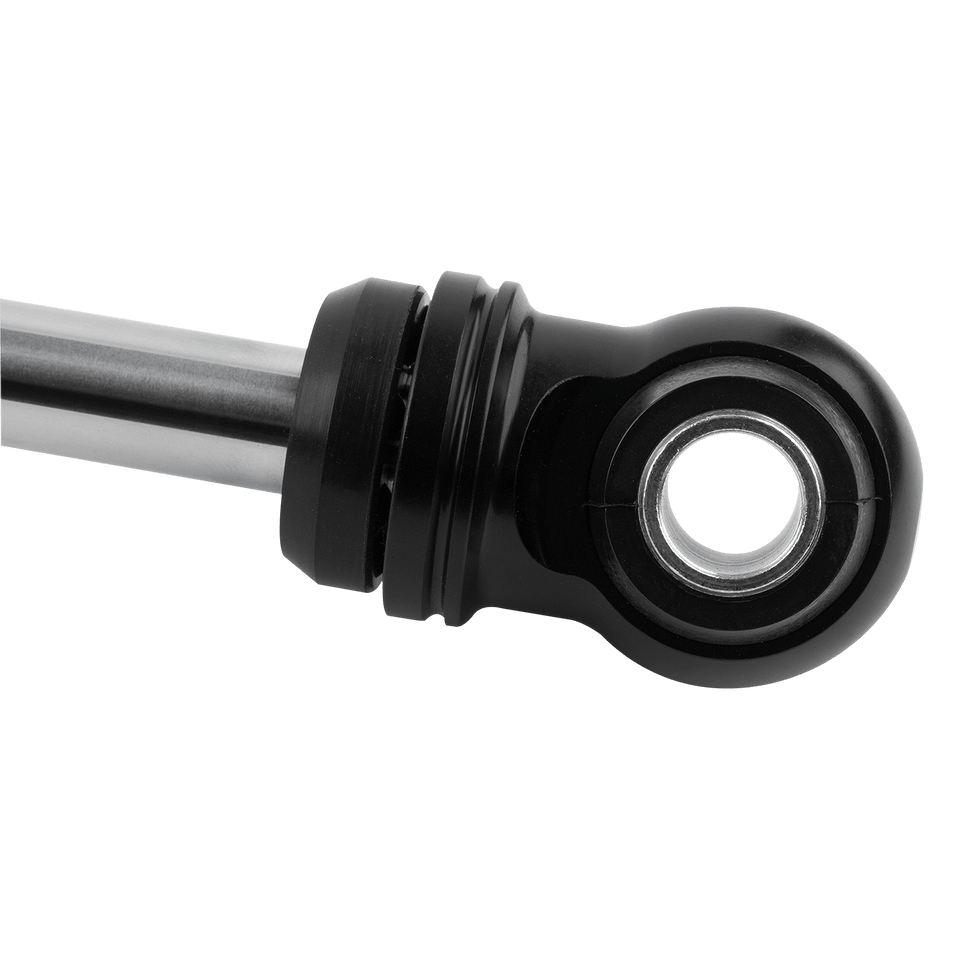

Includes black anodized CNC-machined 6061-T6 aluminum parts and a 1/2" hard chrome-plated heat-treated alloy steel shaft.
Key Specifications
Series: Performance
Travel: 7.45
Body: 2.0" impact-extruded 6061-T6 aluminum
Body Plating: Clear-anodized
Components: Black-anodized CNC-machined 6061-T6 aluminum
Shaft: 1/2" hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston
Valving: Application specific
Seals: Redundant sealing pack (main seal, wiper, scraper)
Extended Length: 20.95
Compressed Length: 13.5
Top Mount: Eyelet
Bottom Mount: Eyelet
