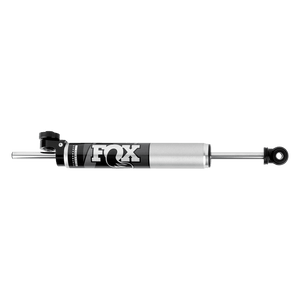

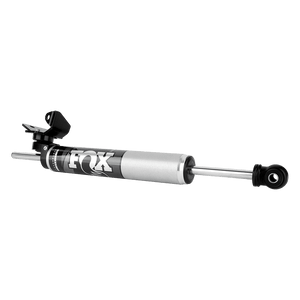

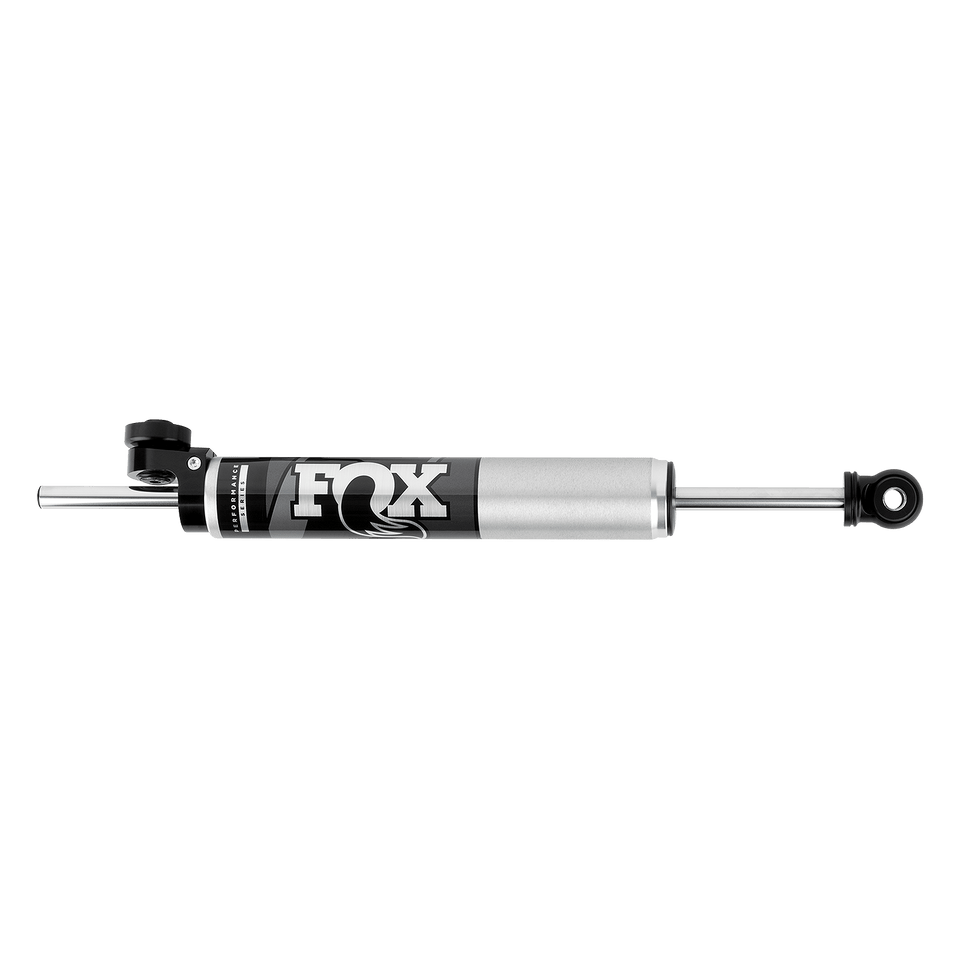

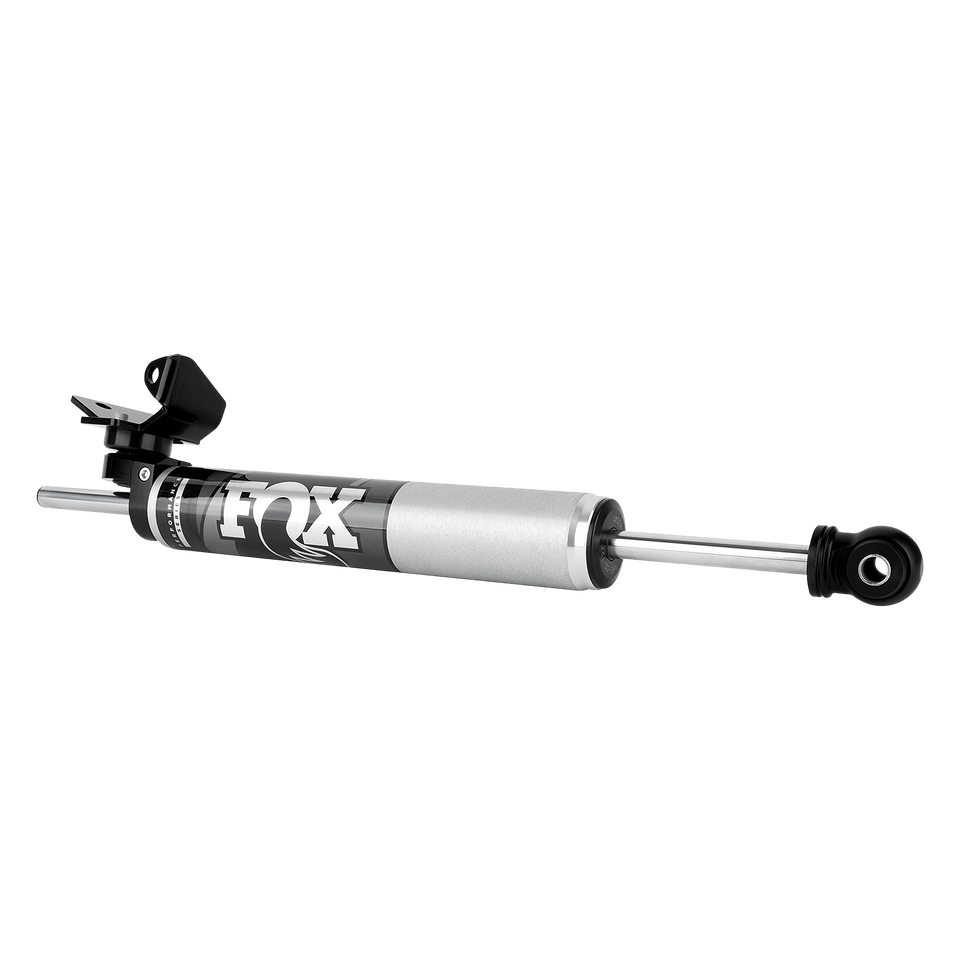

• Through Shaft (TS) Architecture
Eliminates fluid displacement by using a through-shaft design, delivering neutral and consistent damping in both directions—no more push or pull during steering return.
• Direct Replacement for Dual Opposing Stabilizers
Achieves balanced control in a single stabilizer without the need for additional mounting hardware or extra space.
• Heat-Dissipating Aluminum Body
2.0" impact-extruded and CNC-machined 6061-T6 aluminum with clear anodizing resists corrosion and disperses heat more efficiently than steel.
• Race-Developed Internal Components
Includes high-flow piston, application-specific valving, and a 5/8" hard chrome plated shaft for smooth, predictable steering feedback.

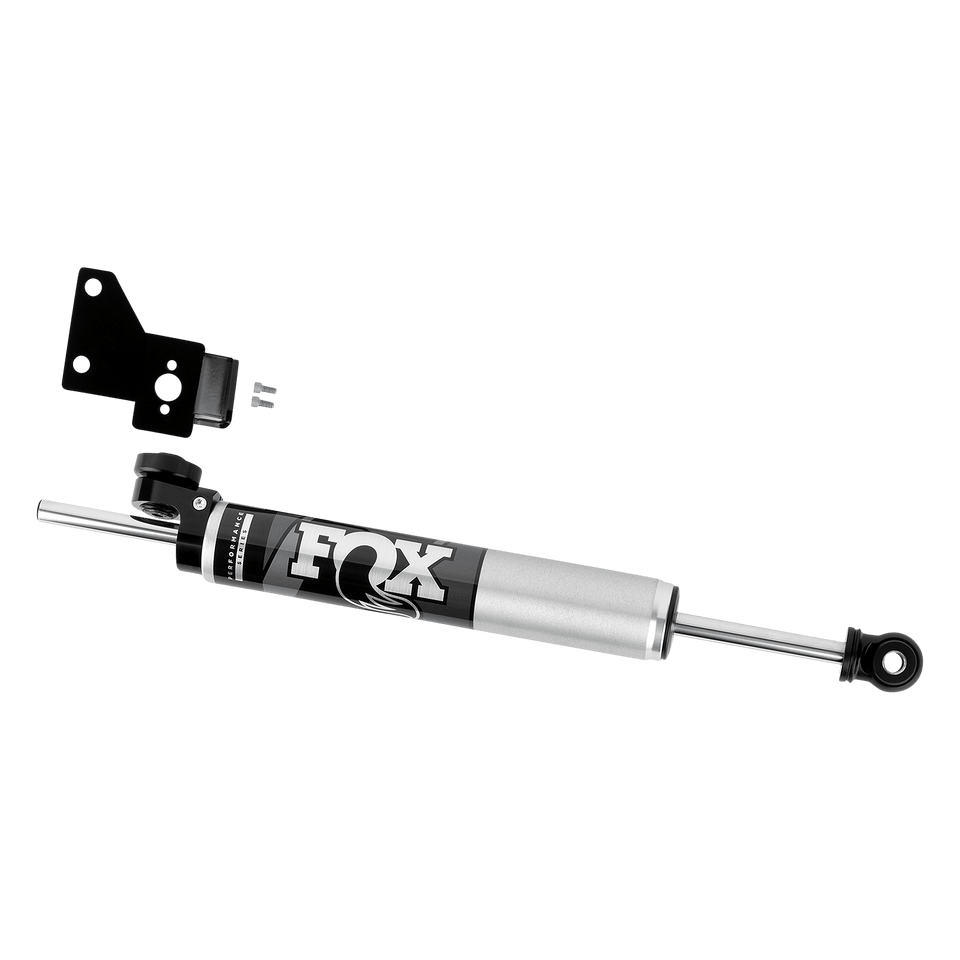

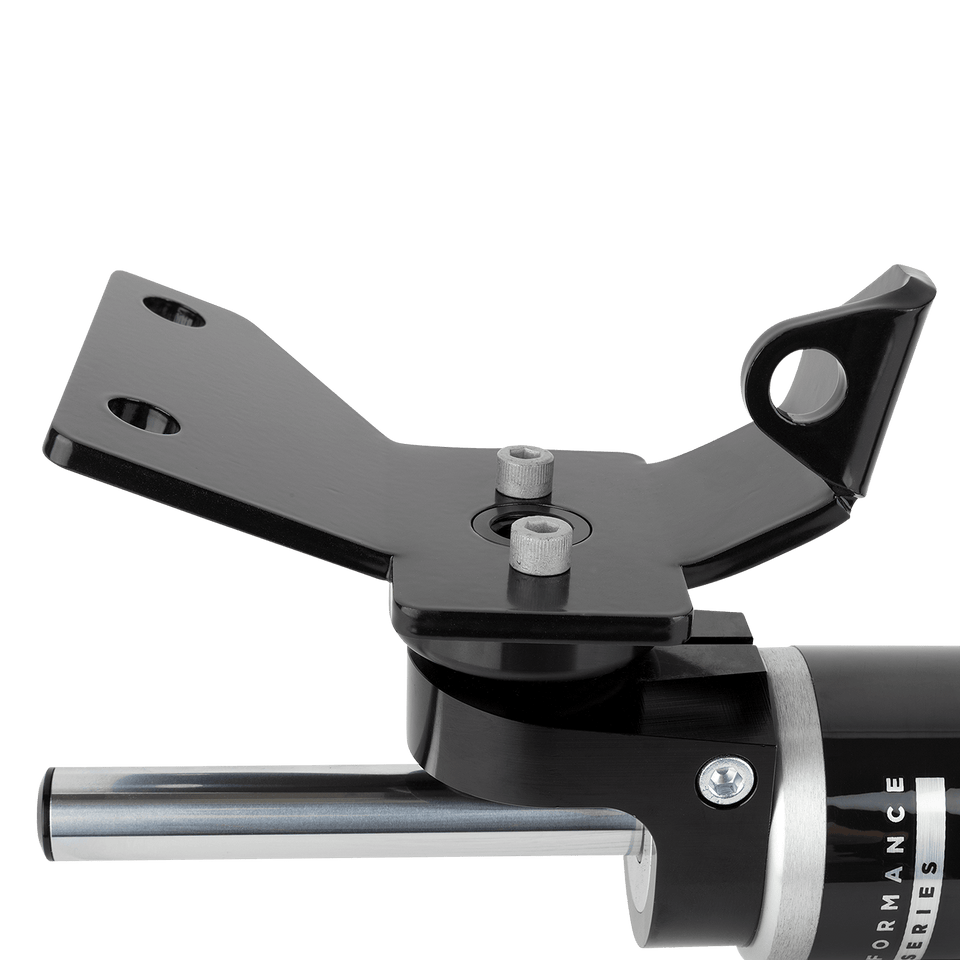

• Bolt-On Installation
Includes application-specific mounting hardware with multiple clamp sizes for stock or aftermarket heavy-duty tie rods.
Key Specifications
Series: Performance
Travel: 8.1
Body: 2.0" impact-extruded 6061-T6 aluminum
Body Plating: Clear-anodized
Components: Black-anodized CNC-machined 6061-T6 aluminum
Shaft: 5/8" hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston
Valving: Application specific
Seals: Redundant sealing pack (main seal, wiper, scraper)
Extended Length: 23.17
Compressed Length: 18.08
Top Mount: Eyelet
Bottom Mount: Axle Mount
Fitment Notes: Axle Mount
