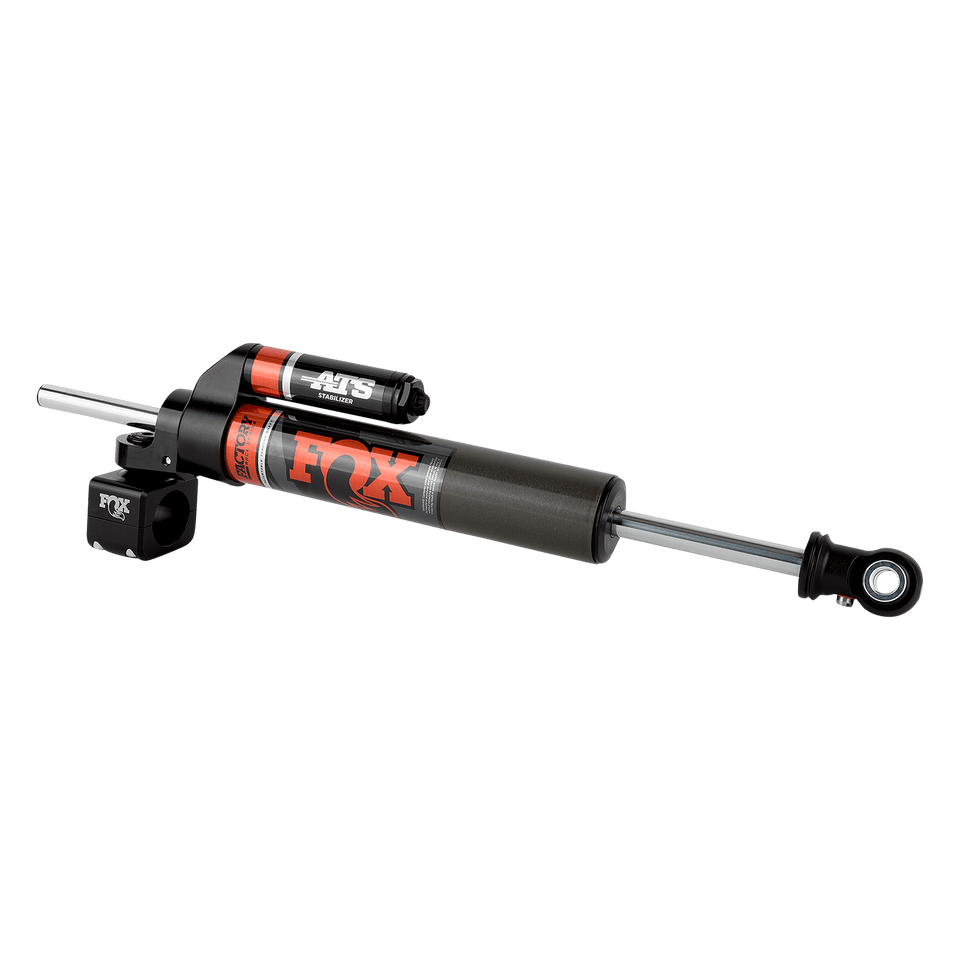

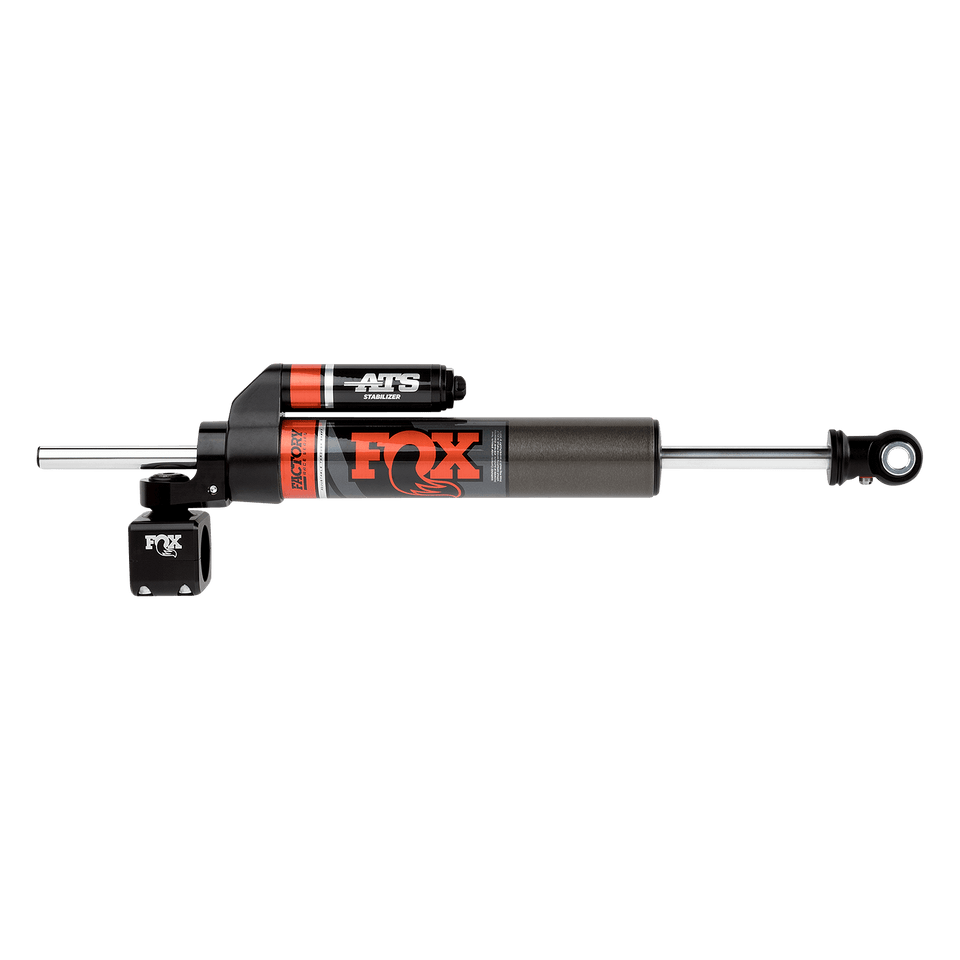

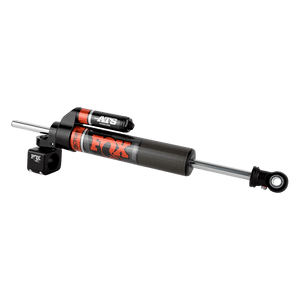

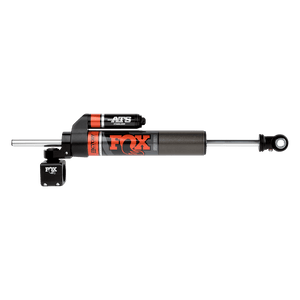

• Adjustable Through Shaft (ATS) Technology
Eliminates fluid displacement by allowing oil to move equally in both directions, delivering truly neutral and consistent damping—no push or pull sensation during steering return.
• External Compression Adjuster (24-Click)
Fine-tune damping with 24 clicks of external adjustment for precise steering feel based on terrain, tires, or personal driving style.
• Piggyback External Reservoir
Expands fluid capacity and uses an Internal Floating Piston (IFP) to prevent aeration, ensuring smooth, consistent performance under pressure.
• High-Performance Construction
2.0" metal-impacted 6061-T6 aluminum body with clear anodized plating resists rust and dissipates heat better than steel.
• Premium CNC Components
Features black-anodized, CNC-machined 6061-T6 billet aluminum components and a 5/8" hard chrome-plated shaft for long-lasting performance.

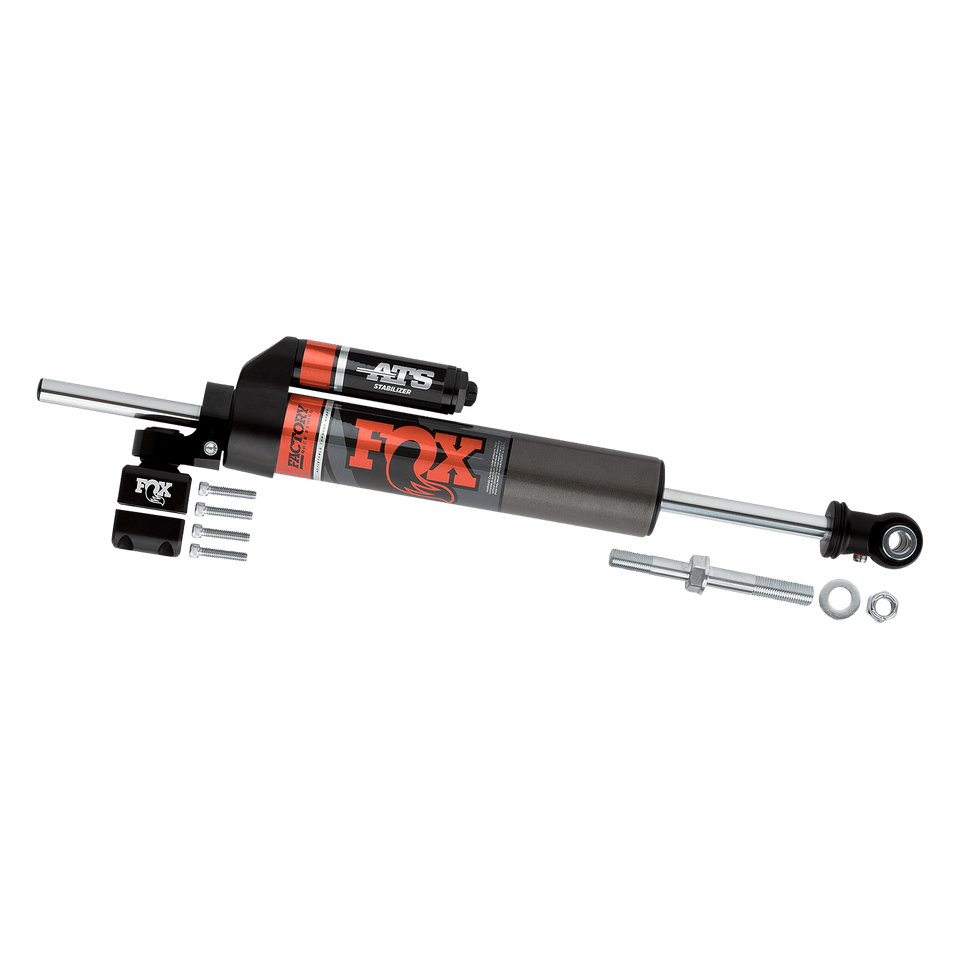

• Bolt-On Installation
Includes application-specific mounting hardware; compatible with stock or aftermarket 1-5/8" heavy-duty tie rods.
Key Specifications
Series: Factory Race
Travel: 8.12
Body: 2.0" metal-impacted 6061-T6 aluminum
Body Plating: Clear-anodized
Reservoir: External piggyback reservoir with IFP
Adjustability: 24-click external compression adjuster
Components: Black-anodized CNC-machined 6061-T6 aluminum
Shaft: 5/8" hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston
Seals: Redundant sealing pack (main seal, wiper, scraper)
Extended Length: 22.2
Compressed Length: 14.09
Top Mount: Tie Rod Clamp

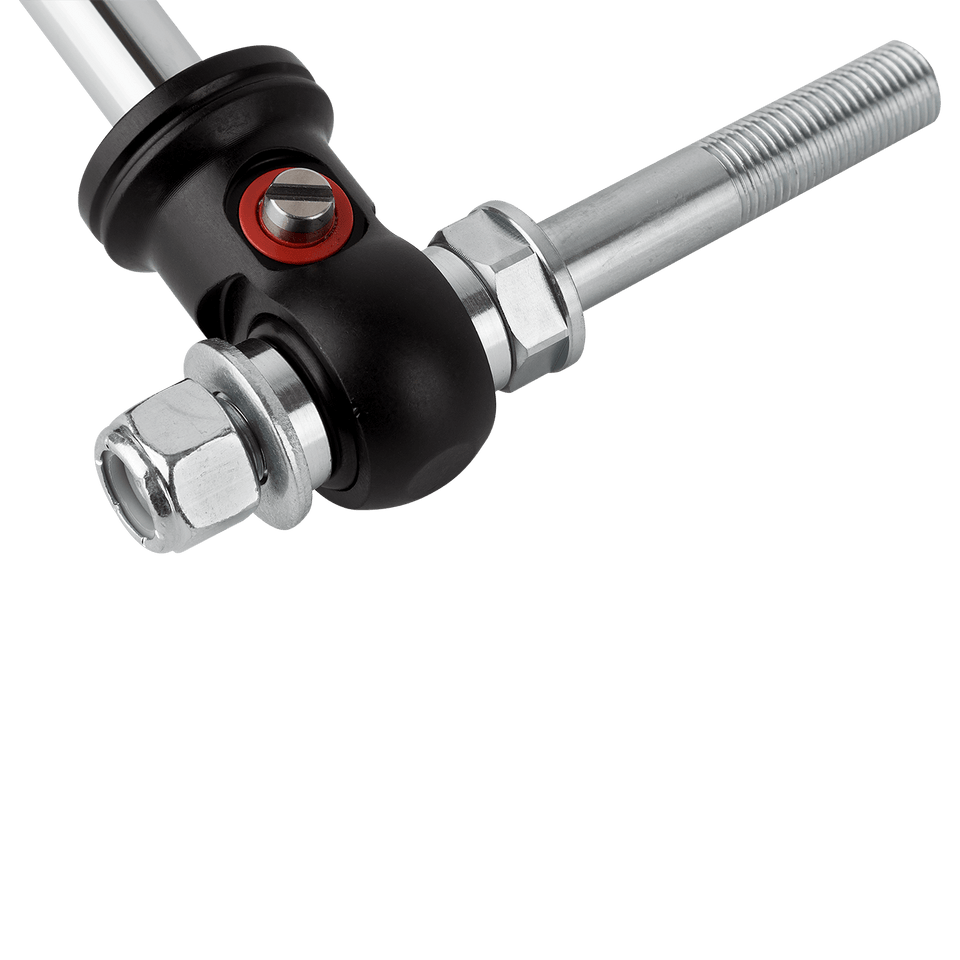

Bottom Mount: Eyelet
Fitment Notes: For 1-5/8" Tie Rods
