• Internal Bypass Technology
Patented position-sensitive damping allows fluid to bypass the piston during normal suspension travel, then ramps up damping at full compression or rebound for maximum control and bottom-out protection.

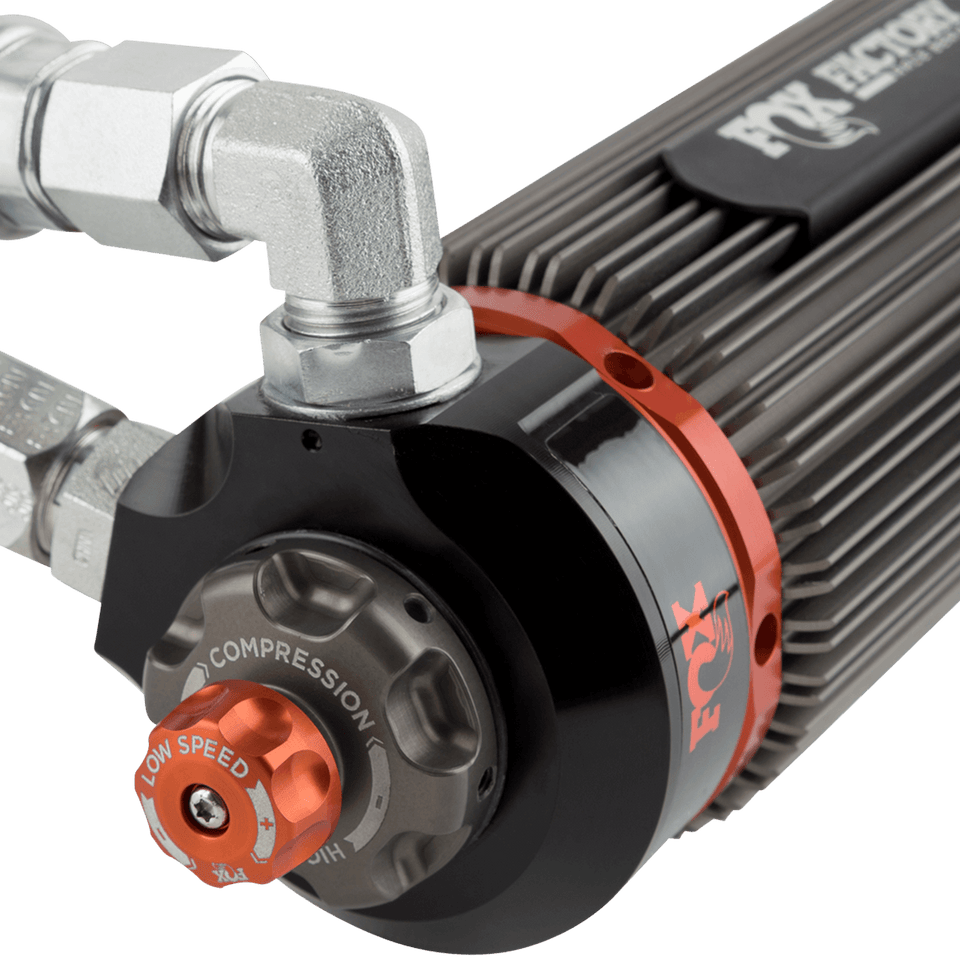

• Recirculating Remote Reservoir
NEW bridge-integrated recirculating reservoir increases fluid capacity and enhances cooling, delivering consistent performance under aggressive use.
• Precision-Tuned for Vehicle Fitment
Race-bred valving is pre-tuned for Jeep Wrangler applications with 3.5–4.5" aftermarket lift kits, utilizing OEM shock mounts for a direct bolt-on fit.
• Plush Yet Controlled Ride
Soft and predictable damping over mild terrain, with progressive control to absorb large hits and reduce harsh top-out or bucking.
• Premium Build Quality
Hard-anodized 3.0" aluminum shock body and black-anodized CNC-machined aluminum components maximize strength, heat dissipation, and corrosion resistance.
Key Specifications
Series: Factory Race
Body: 3.0" hard-anodized aluminum
Reservoir: External recirculating reservoir
Bypass Zones: Internal multi-zone damping control
Components: Black-anodized CNC-machined aluminum
Valving: Application-specific, race-developed
Mounting: Direct bolt-on to OEM pivots
